Specifications:

Model No.LBTR24F
10/100/1000Base-TX Port24 port RJ-45 auto-MDI / MDI-X
Performance Specification

Bandwidth: 4.8Gbps

Packet Buffer Memory:4Mbit

Packet Forwarding Rate:3.6Mpps

MAC Address Table: 8K

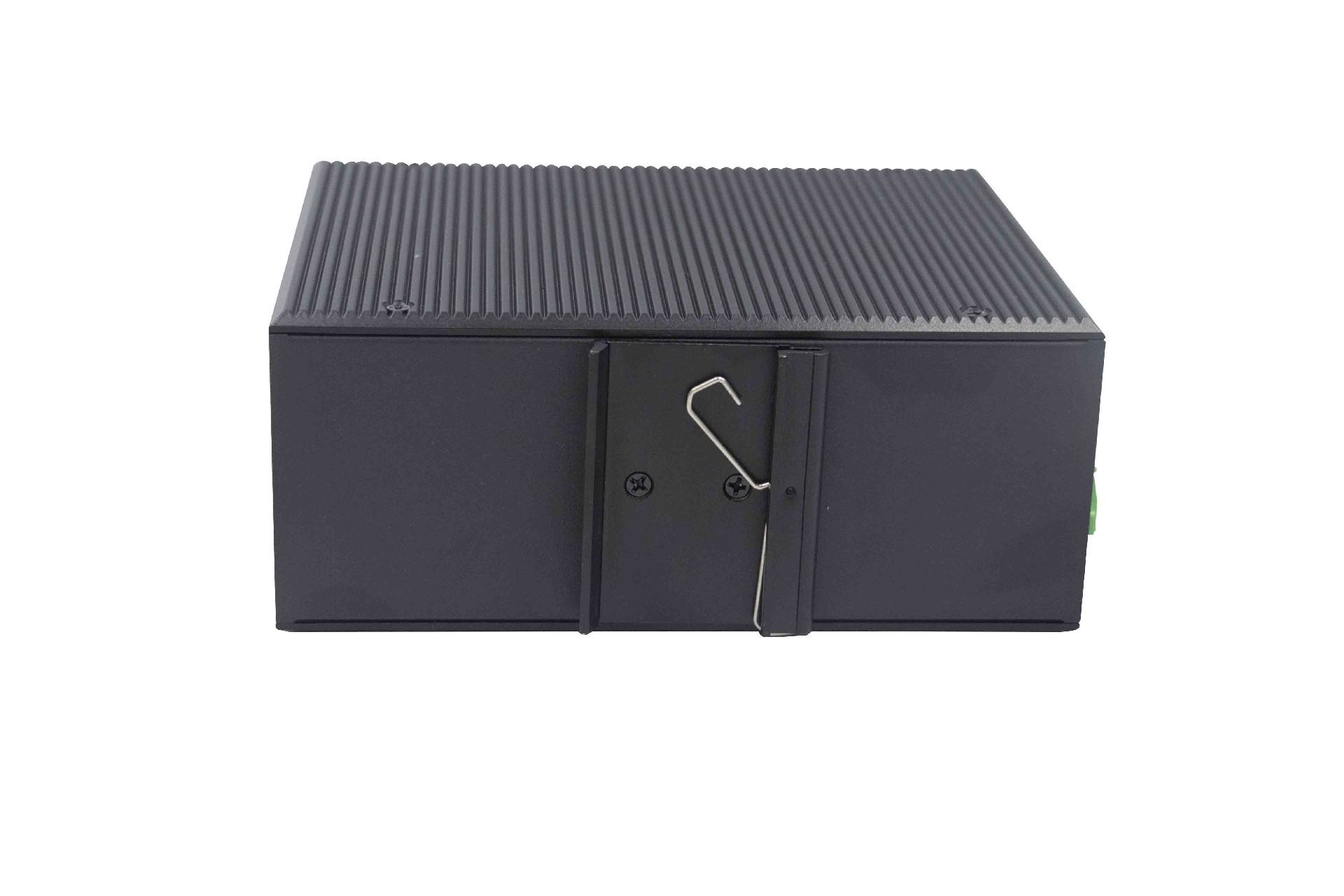

InstallationDIN rail
Maximum Frame Size2000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
LED Indicator

Power: Red

Ethernet: Yellow

Power Input12 to 52V DC redundant power
Power Consumption< 10 watts
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3x

Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)


Industry Standard

EMI ：FCC Part 15 Subpart B Class A，EN 55022 Class A

EMS :

IEC(EN)61000-4-2(ESD) : ±8Kv contact discharge,±12kV air discharge

IEC(EN)61000-4-3(RS) : 10V/m(80～1000MHz)

IEC 61000-4-4 (EFT), Power cord ±4kV   data cable:±2kV

IEC 61000-4-5 (Surge), Ethernet port ±4kV CM//±2kV DM

IEC(EN)61000-4-6(RF conduction) : 3V(10kHz～150kHz),10V(150kHz～80MHz)

IEC(EN)61000-4-24(common conduction) : 30V cont. 300V,1s

IEC(EN )61000-4-8

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6


MTBF300,000hours
CertificationCE FCC Rohs compliance
Dimensions (W x D x H)166 x 137 x 68.5 mm
Weight

Product Weight: 1.4KGS

Packing Weight: 1.5KGS

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty1-year replacement with new item; 3-years for main parts.



Ordering Information

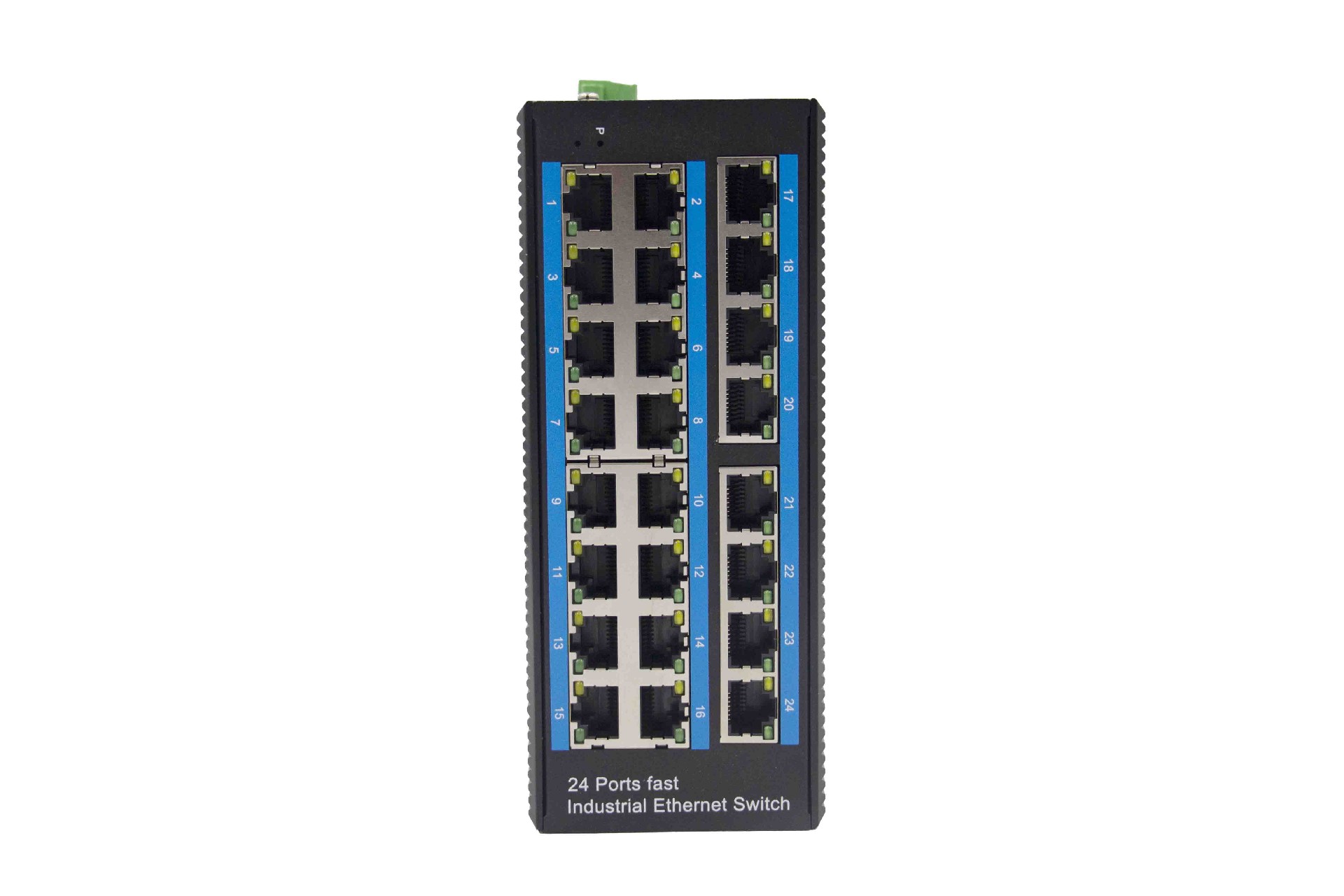

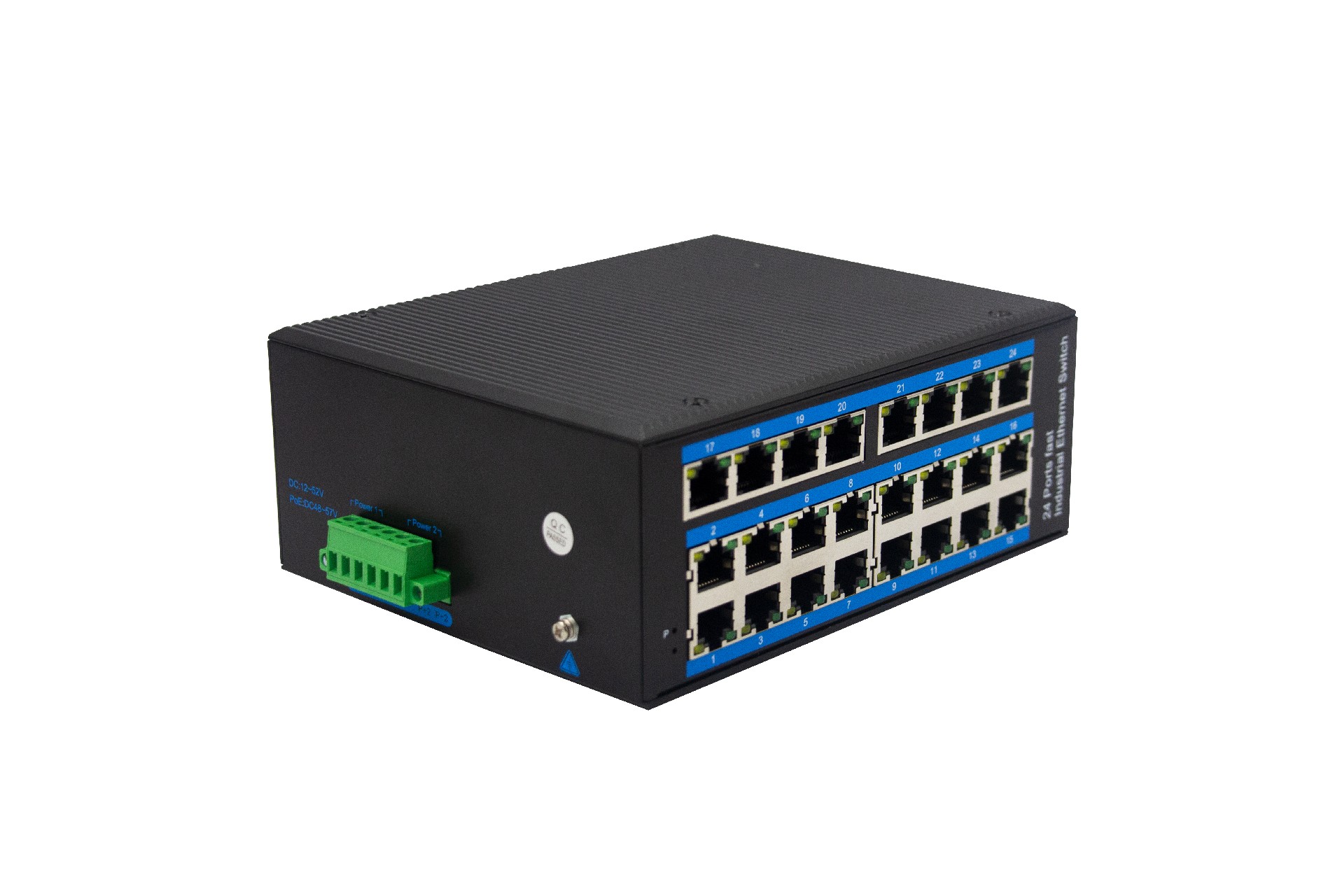

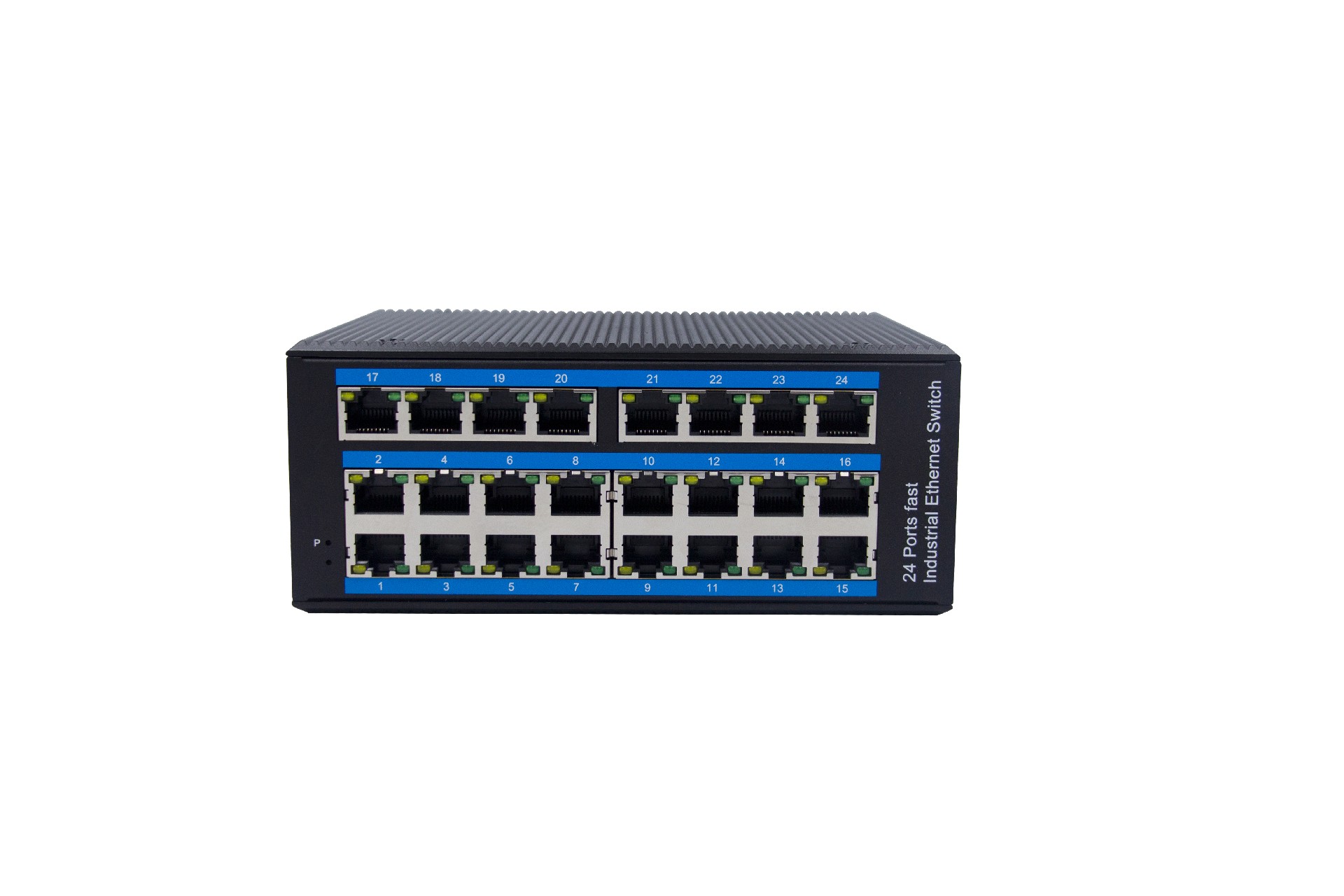

LBTR024F24-port 10/100BASE-TX Industrial Ethernet Switch
