LBT24GS-M-SFP

  • Product details
  • Data download
  • Video and Documents


Specifications:

Model No.LBT24GS-M-SFP
1000Base-TX Port4 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port

2G SFP Slot


Performance Specification

Bandwidth (switch capacity): 38Gbps

Packet Buffer Memory: 12Mbit

Packet Forwarding Rate: 28.3Mpps

MAC Address Table: 8K


InstallationDIN rail
Maximum Frame Size10240bytes
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 slim type metal case
LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

Power Input12 to 52V DC redundant power
Power Consumption3 watts
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;


Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)


CertificationCE FCC Rohs compliance
MTBF>300,000hours

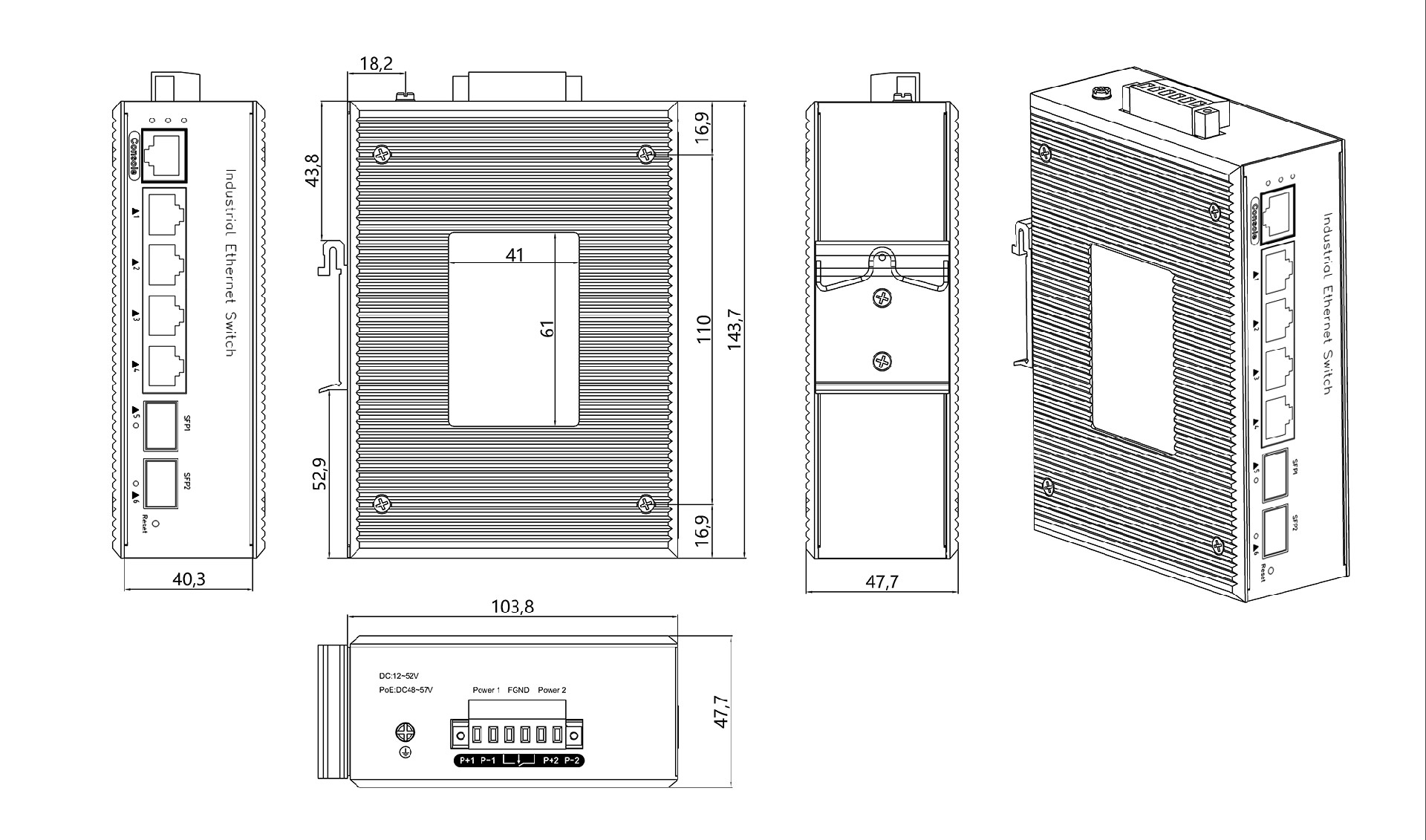

Dimensions (W x D x H)143.7 x 103 x 44.2 mm
Weight

Product Weight: 0.36KG

Packing Weight: 0.46KG

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty1-year replacement with new item; 3-years for main parts.


Ordering Information

LBT24GS-M-SFP4-port 10/100/100BASE-TX+2G SFP Managed Industrial Switch
