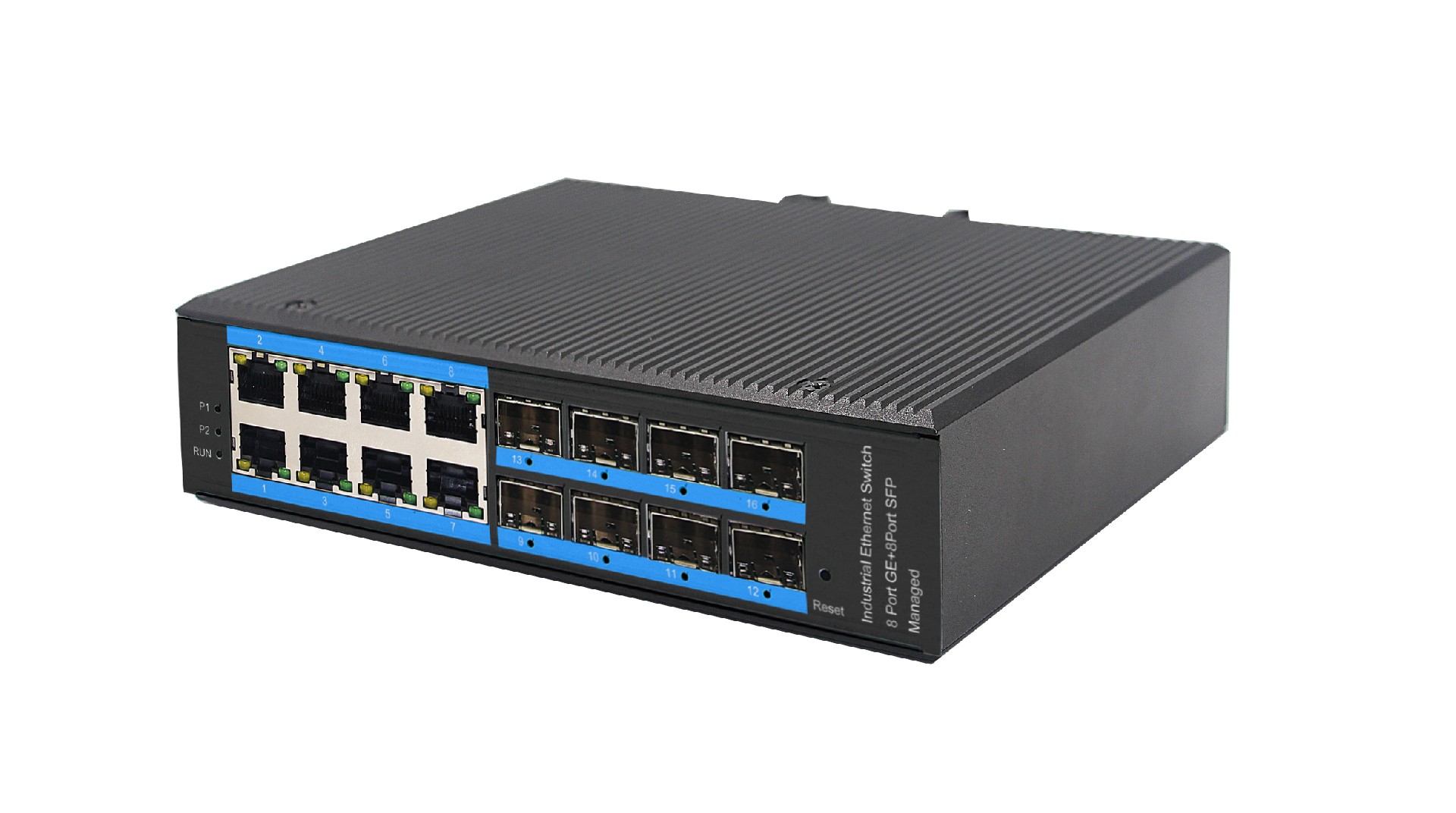

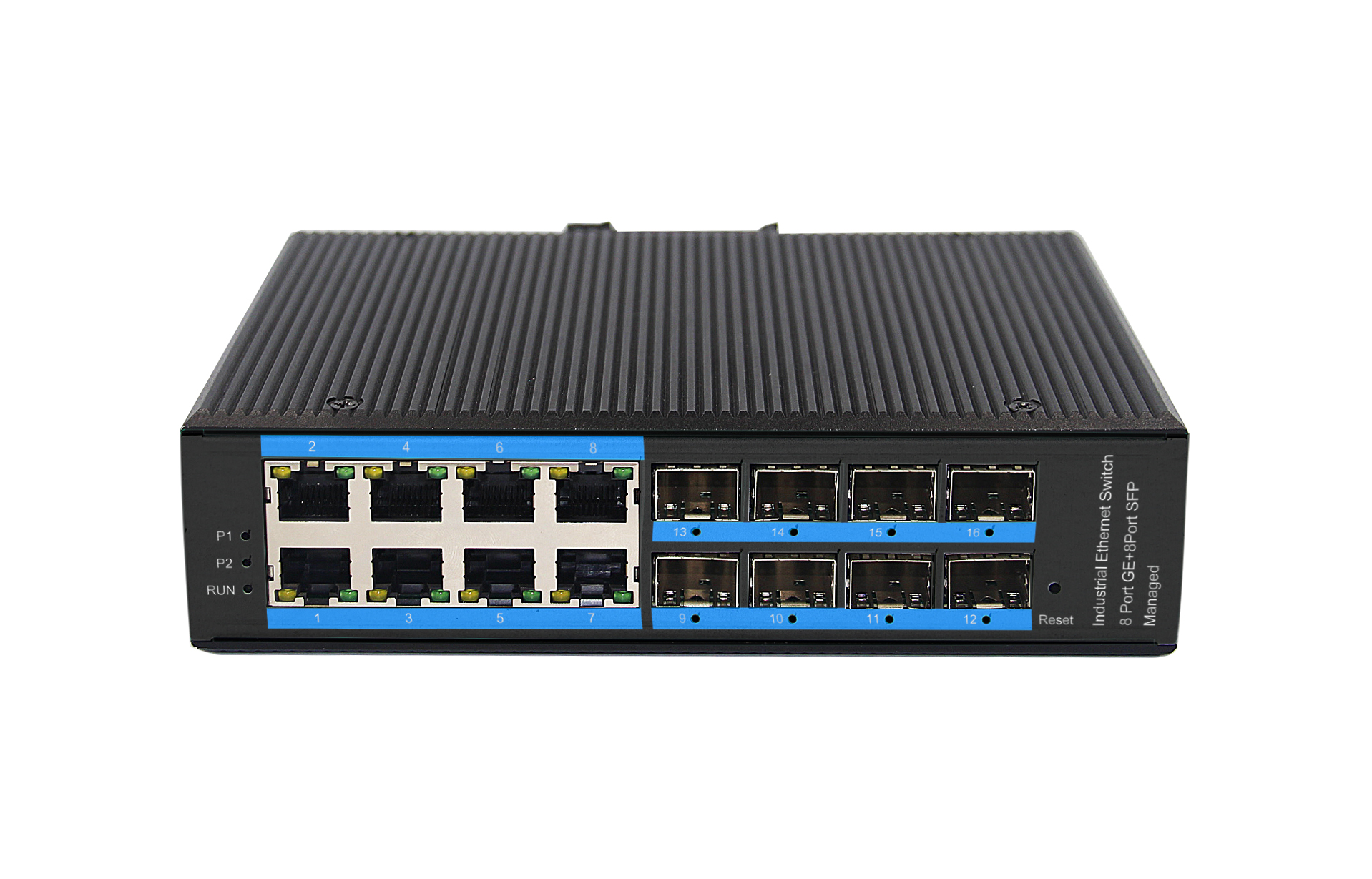

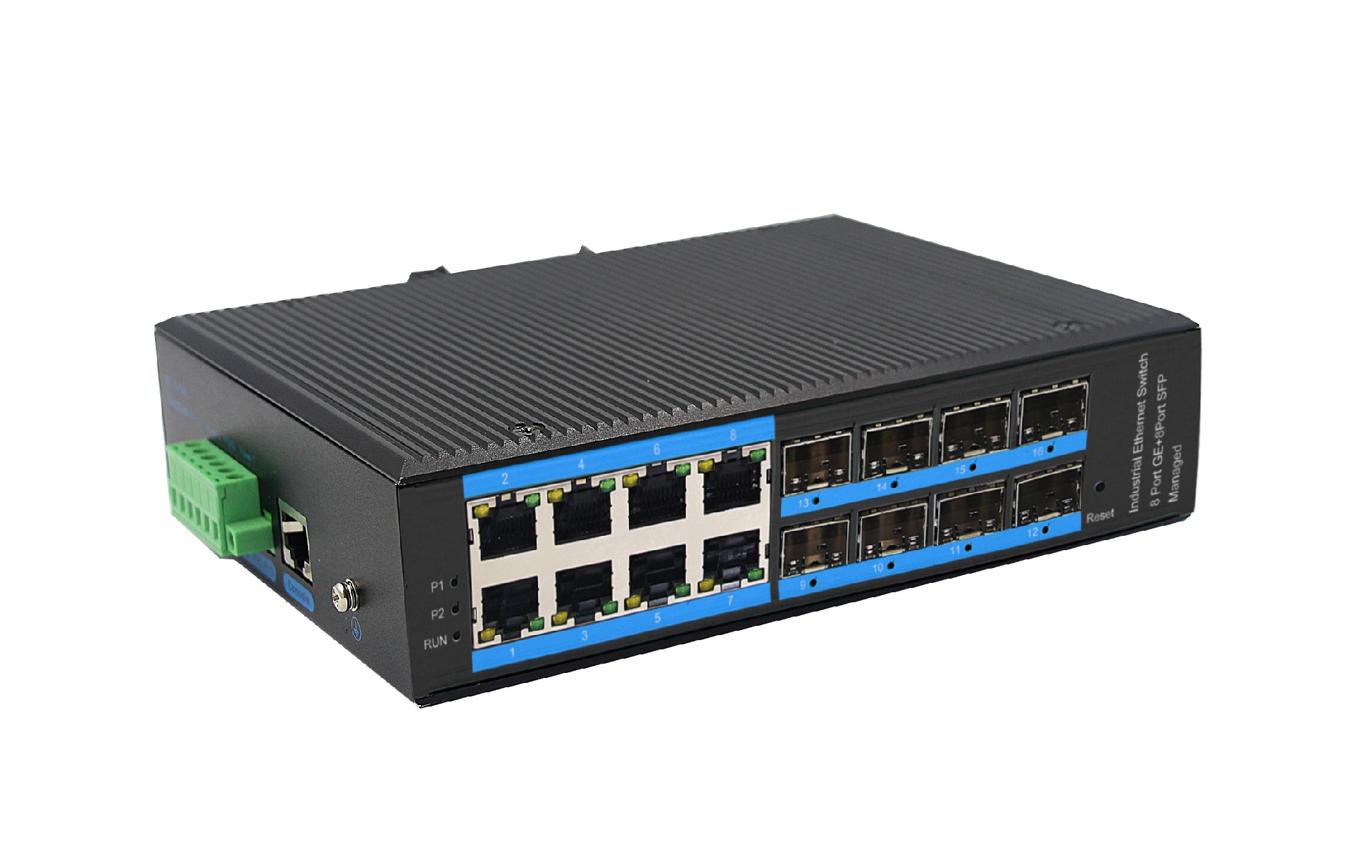

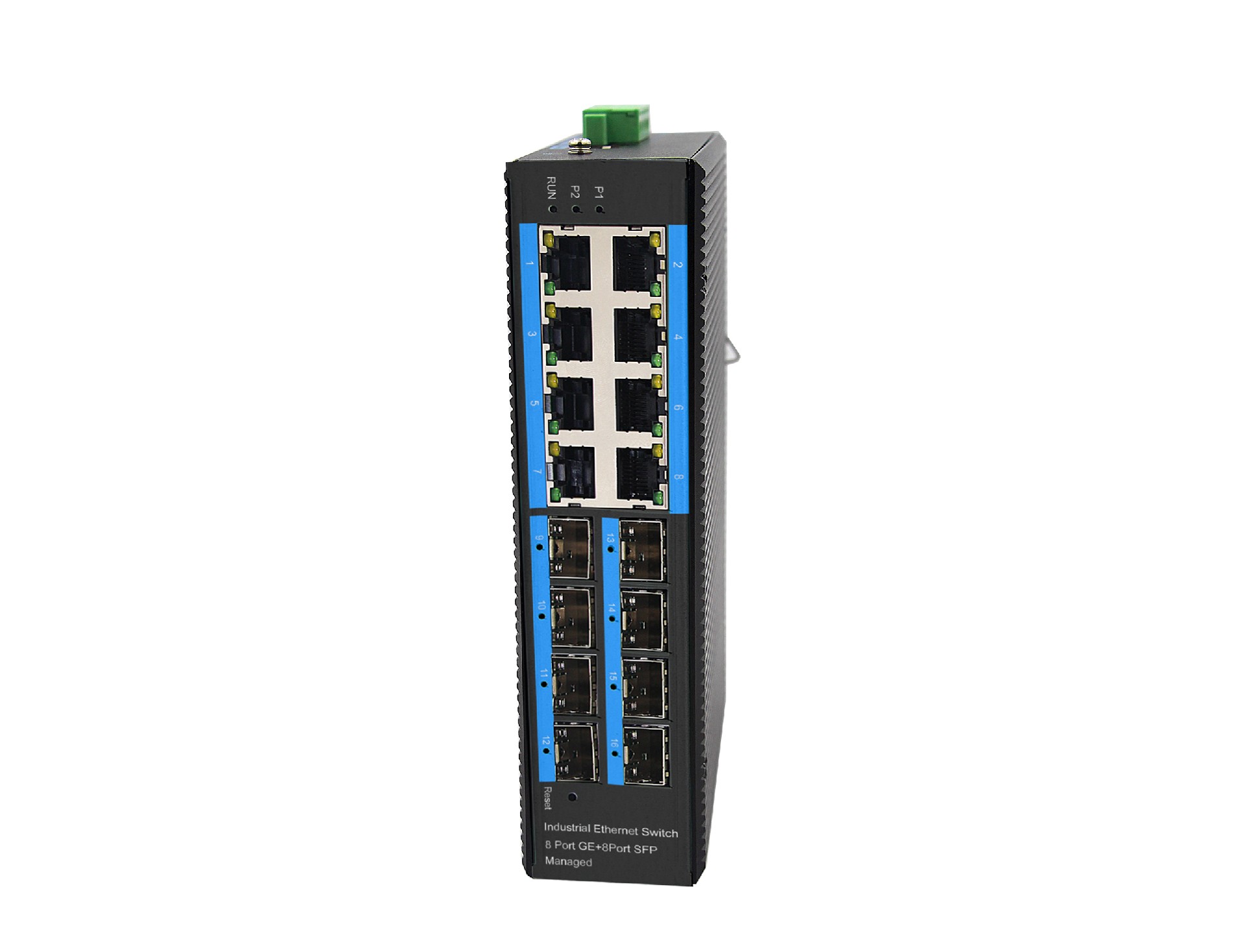

LBT88GS-M-SFP

  • Product details
  • Data download
  • Video and Documents


Specifications:

Model No.LBT88GS-M-SFP
1000Base-TX Port8 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port

8G SFP Slot


Performance Specification

Bandwidth: 56Gbps

Packet Buffer Memory: 12Mbit

Packet Forwarding Rate: 42Mpps

MAC Address Table: 8K


InstallationDIN rail
Maximum Frame Size10240bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow


Power Input12 to 52V DC redundant power
Power Consumption< 10 W
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;


Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55022/CISPR22, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)


CertificationCE FCC Rohs compliance
MTBF>300,000hours

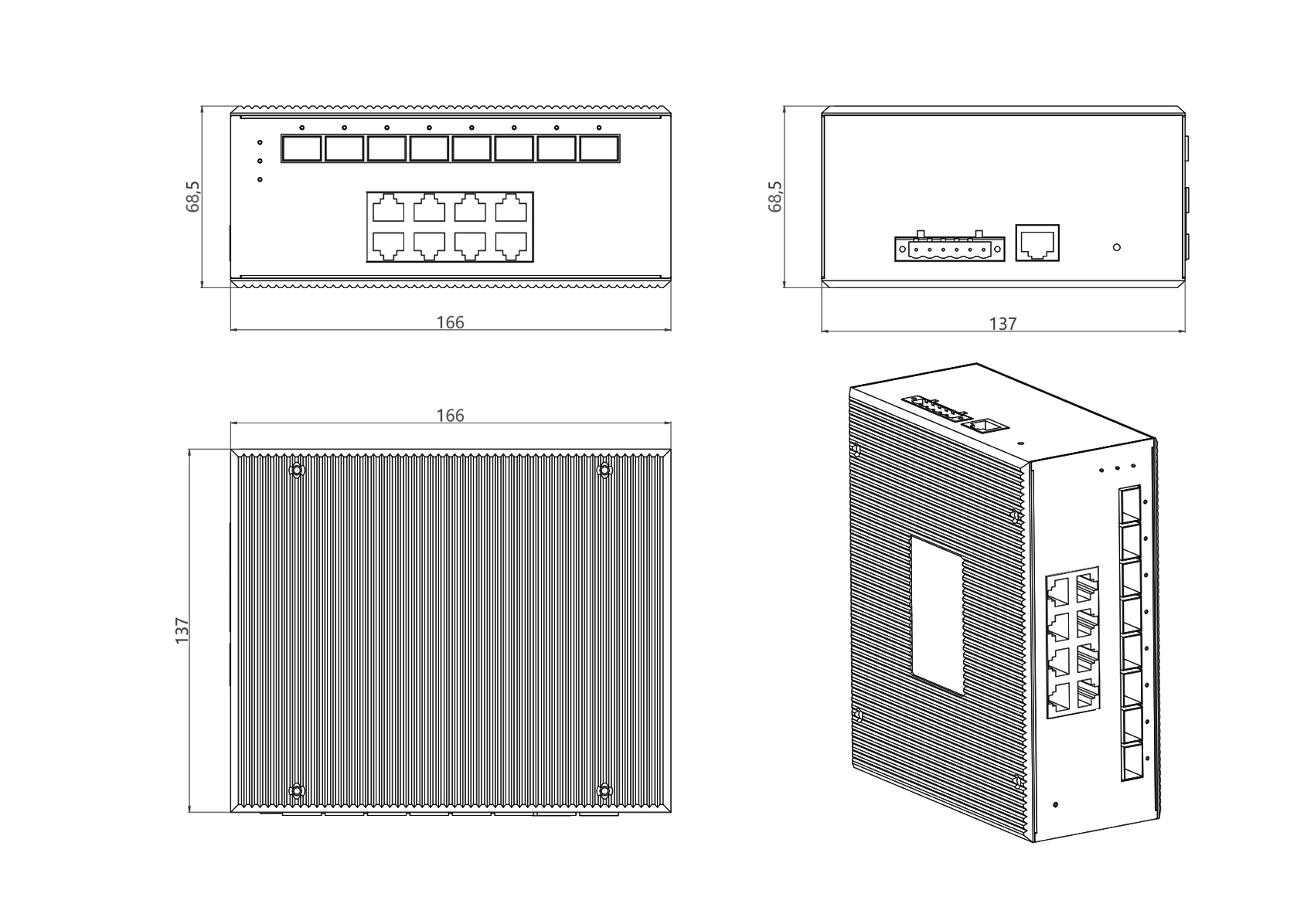

Dimensions (W x D x H)179 x 134 x 46 mm
Weight

Product Weight: 0.88KG

Packing Weight: 1KG

Working Environment

Working temperature: -40～85℃ ;

Storage temperature: -40～85℃

Relative Humidity: 5%~95 %( no condensation)

Warranty

1-year replacement with new item; 3-years for main parts.



Ordering Information

LBT88GS-M-SFP8-port 10/100/100BASE-TX+8G SFP Managed Industrial Switch
