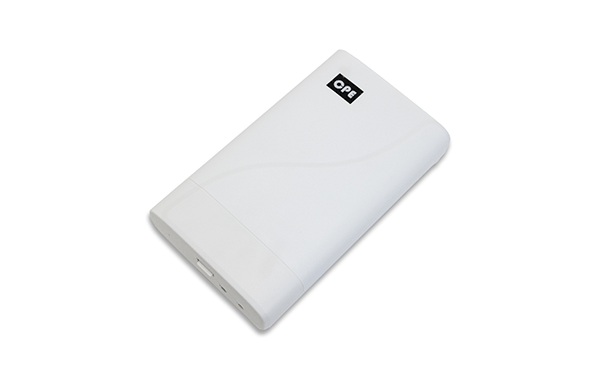

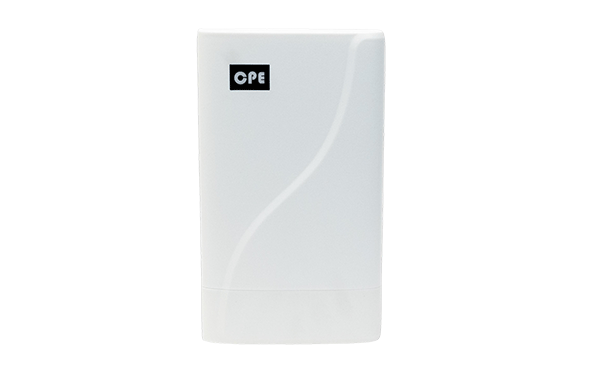

4G industrial router for remote monitoring / solar / vending
This product is a 4G CPE supporting outdoor installation, equipped with dual network port, which can provide wired network for other equipment. Poe power supply design, flexible networking. Plug in the SIM card to easily provide a network for the device. It can be used outdoors, and the plug-in card has a network anytime, anywhere. It has the function of regular restart and firewall protection. The built-in hardware watchdog can effectively prevent the system from crashing during operation. Built in dual firmware can automatically recover the system due to software upgrade failure or abnormal startup caused by software.
Product specification
l Dual network interface design, can provide wired network for other equipment.
l POE power supply, flexible networking mode.
l Plug in the SIM card to easily provide a network for the device.
l It can be used outdoors, and the plug-in card has a network anytime, anywhere.
l Built in hardware watchdog, built-in dual firmware, stable operation.
l With directional antenna, it can receive remote base station signal.
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: HW4-CN-5GA-W5-S1-RS485; Version HW3, China 5G domestic solution, single band WiFi5, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 24*14.2*6.5cm(L×W×H) |
Operating frequency band | 2412-2484MHz |
Power supply | POE power adapter: 24V - 1A |

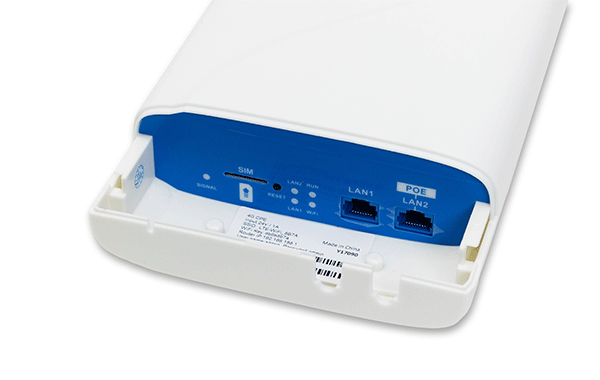

External interface Protection level | Reset button: 1 Indicator lights: 4 Antenna interfaces: 1-4 (optional) SIM card slot: 1 TTL interface: 1 USB 2.0 terminal interface: 1 LAN port: 2 (LAN2 is POE) |
Indicator light | LAN1-LAN2、RUN、WiFi |
Antenna | IPEX1 Mother Board |
Storage memory | Storage: 16MB, Memory: 64MB |
Power consumption (current) | 4G:小于 400mA |
Work environment | Operating temperature: -35 to 75℃ Storage temperature: -40 to 90℃ |
Feature Data
Basic functions | 4G Internet Protocol: 4G Dial-up Internet Access, DHCP/Static IP Supported number of users: Wired: 20, Wireless: 20 Port protocols: NAT, DNAT, DMZ, Port Forwarding APN: L2TP, PPTP Soft and hard watchdogs for preventing system crashes. When the router loses internet connection, it will automatically power off and restart to ensure stable and reliable operation of the equipment. |
LTE speed | FDD-LTE：150M DL / 50M UL Cat4 TDD-LTE：130M DL / 35M UL Cat4 |
WLAN Safety Protocol | OpenSystem 、WPA-PSK 、WPA2-PSK、WPAPSKWPA2PSK、 WPA1WPA2 |
WiFi Transmission rate / Data | Transmission rate: 300Mbps (MAX) (Theoretical maximum value) WiFi data: 802.11n: -68dBm at 300Mbps HT20 MCS7: +14dBm (±2dB) 802.11b: -86dBm at 11Mbps CCK: +14dBm (±2dB) 802. 11g:-73dBm at 54 Mbps OFDM: +14dBm (±2dB) |
Certification | CE 、FCC 、CCC |
System Services | Port triggering, serial port service, firewall, MAC filtering, access control, port blocking, zone settings, factory reset recovery, NTP server settings, system information backup, software upgrade/remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 24g |
Product dimensions (mm) | 24*14.2*6.5cm |
Packaging size (cm) | 25.6*19.3*6.8cm |
Product packaging weight (kg) | 0.5kg |
Outer box dimensions (cm) | 71*41*56cm |
Container weight estimate (kg) | 17kg |
Optional frequency bands
4G Band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |

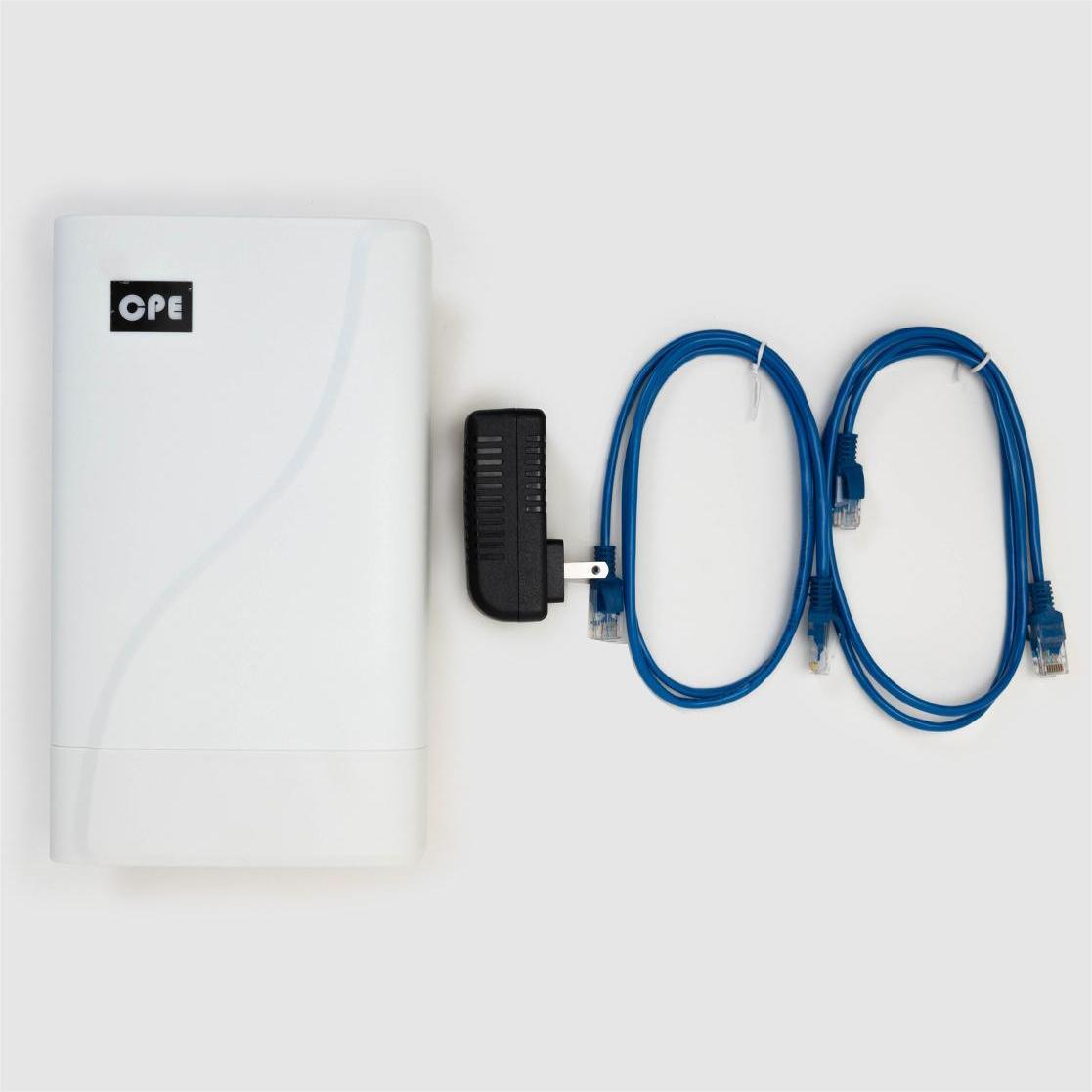

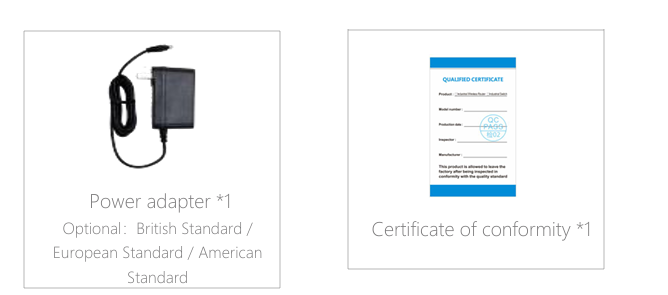

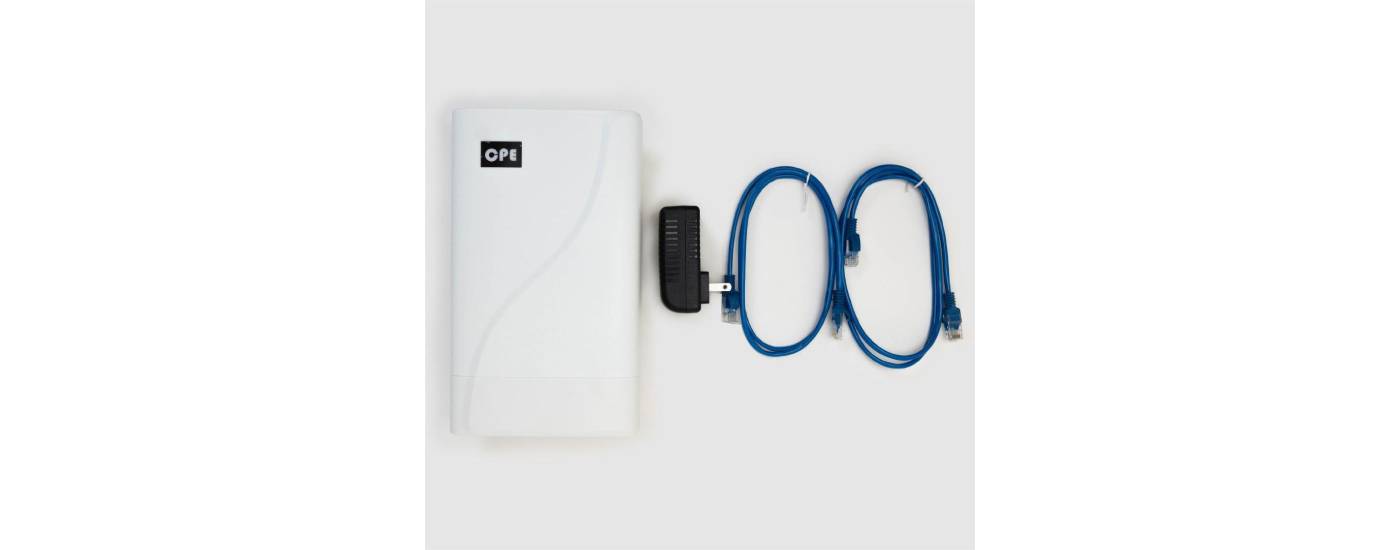

Standard accessories
