4G industrial router for remote monitoring / solar / vending
Product overview
T300-310A industrial wireless router is a wireless communication product with excellent performance developed by Shenzhen Libiton Technology Co., Ltd. based on the demand of 4G network. It is mainly used in the data transmission business of industry users, supporting image transmission, equipment monitoring and routing Internet access.
The T300-310A features an embedded high-performance CPU that effortlessly handles routing, security, Congruent advanced applications can be matched with a variety of 4G industrial communication modules (TDD-LTE/FDD-LTE networks). Provide 10/100M Ethernet port. A variety of terminal devices can be docked. Support WEB configuration mode, convenient and simple management, and support remote cloud control.
Product Characte
1. Ultra-small volume, length and width are only 97 mm × 78.2mm × 25.1 mm;
2, industrial protection interface, easy to install;
3. Adopt metal shell with protection grade of IP30;
4. There is a router scheme;
5. Wired support 1 WAN or 1 LAN, 10M/100M adaptive;
6. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart to ensure stable and reliable operation of the equipment;
7, automatic detection of network disconnection, automatic restart of dialing failure, timing restart and other functions;
8. Port mapping, DMZ host and other functions;
9. Support VPN (PPTP Client, L2TP Client);
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 310A-CN-4GA-W4-S1-RS485; Version 310, China 4G domestic solution, single band WiFi4, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 97*78.2* 25.5mm (L×W×H)(antenna interface excluded) |
Power supply | Dc power supply: 12-24V / 1A |

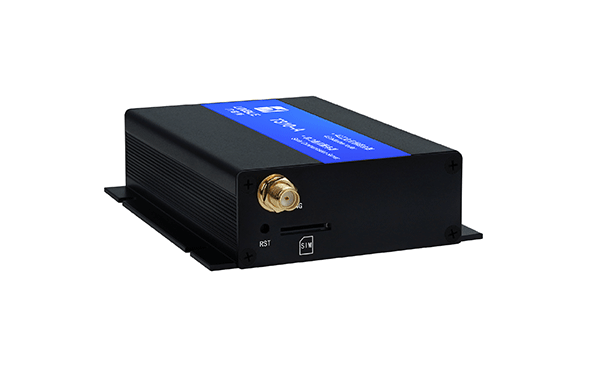

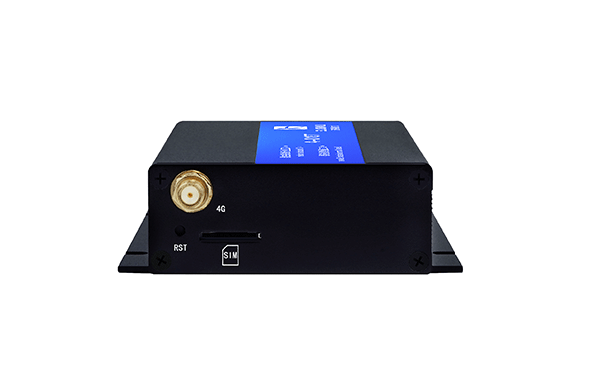

External interface Protection grade | Reset key: 1 Indicator lights: 4 Antenna interface: 1 SIM card slot: 1 DC power supply interface (optional: terminals/DC power supply): 1 (2.1mm round-head power interface) RS232/485 interface: 1 (optional) (2.0mm 4PIN connector) LAN port: 2 (LAN1 is WAN/LAN adaptive) Protection level: IP30 |

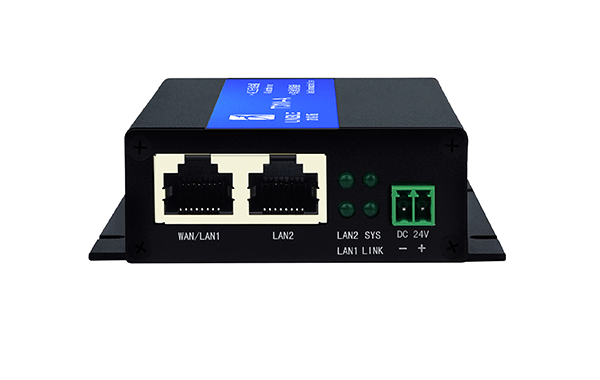

Indicator light | LINK, SYS, WAN/LAN1 to LAN2 |
Antenna | SMA external rotating inner hole |
Storage memory | Storage :8MB, memory: 64MB |
Authentication | CE, FCC, CCC |
Power consumption (current) | 4G: less than 400 mA |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | 4G Internet Protocol: 4G dial-up access / DHCP / Static IP / PPPoE. Number of users supported: Wired: 253 Network functions: NAT, DNAT, DMZ, port forwarding Soft and hardware watchdog design to prevent system from freezing. When the router loses connection, it will automatically power off and restart to ensure stable and reliable operation of the equipment. |
VPN | PPTP VPN Client、L2TP VPN Client（Private network version function） |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 152g |
Product dimensions (mm) | 97 * 78.2 * 25.5 mm |
Packaging size (cm) | 25*16*7cm |
Product packaging weight (kg) | 0.5 kg |
Outer box dimensions (cm) | 71.3 * 44.3 * 26.8 cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN(Domestic - default) : FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU(Europe) : FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 NA(North America) : FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA(South America) : FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J(Japan) : FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL(Global) : FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |

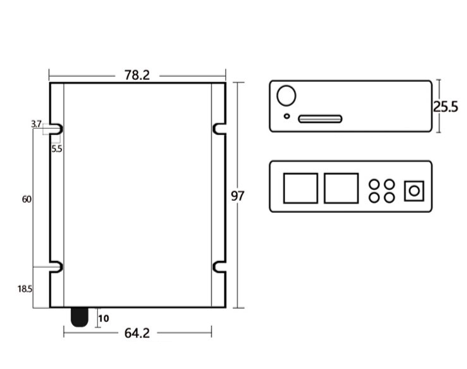

Housing positioning holes

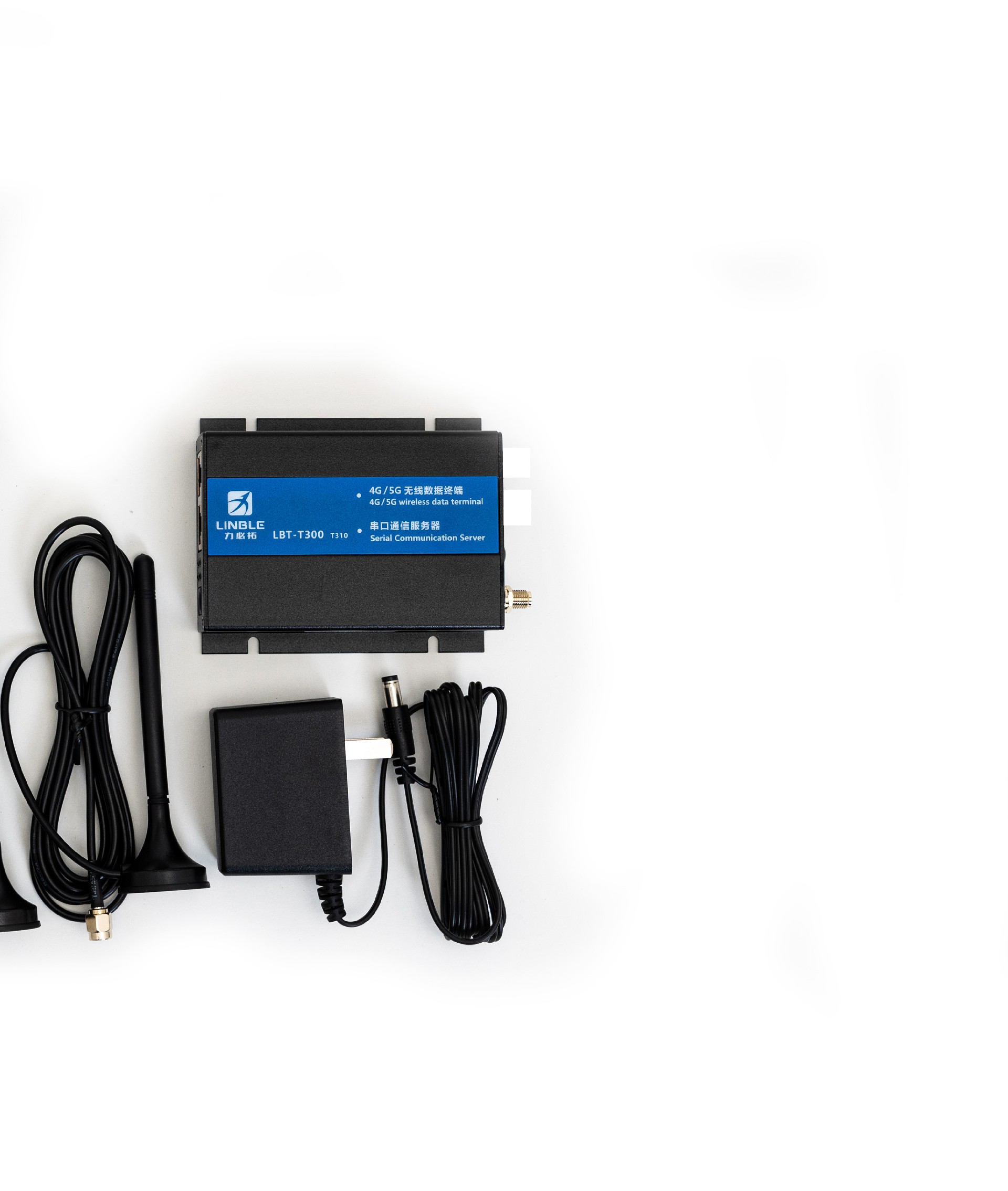

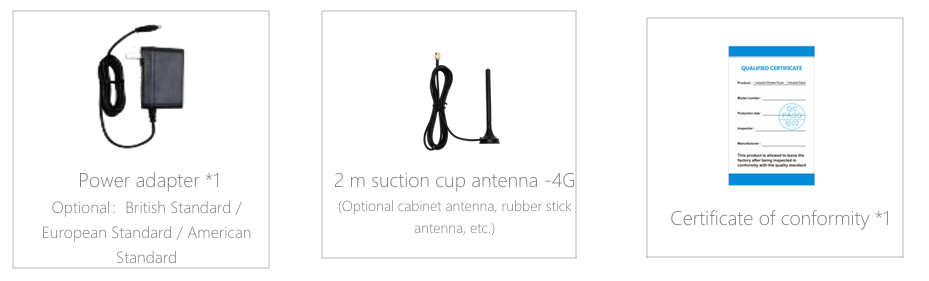

Standard accessories
