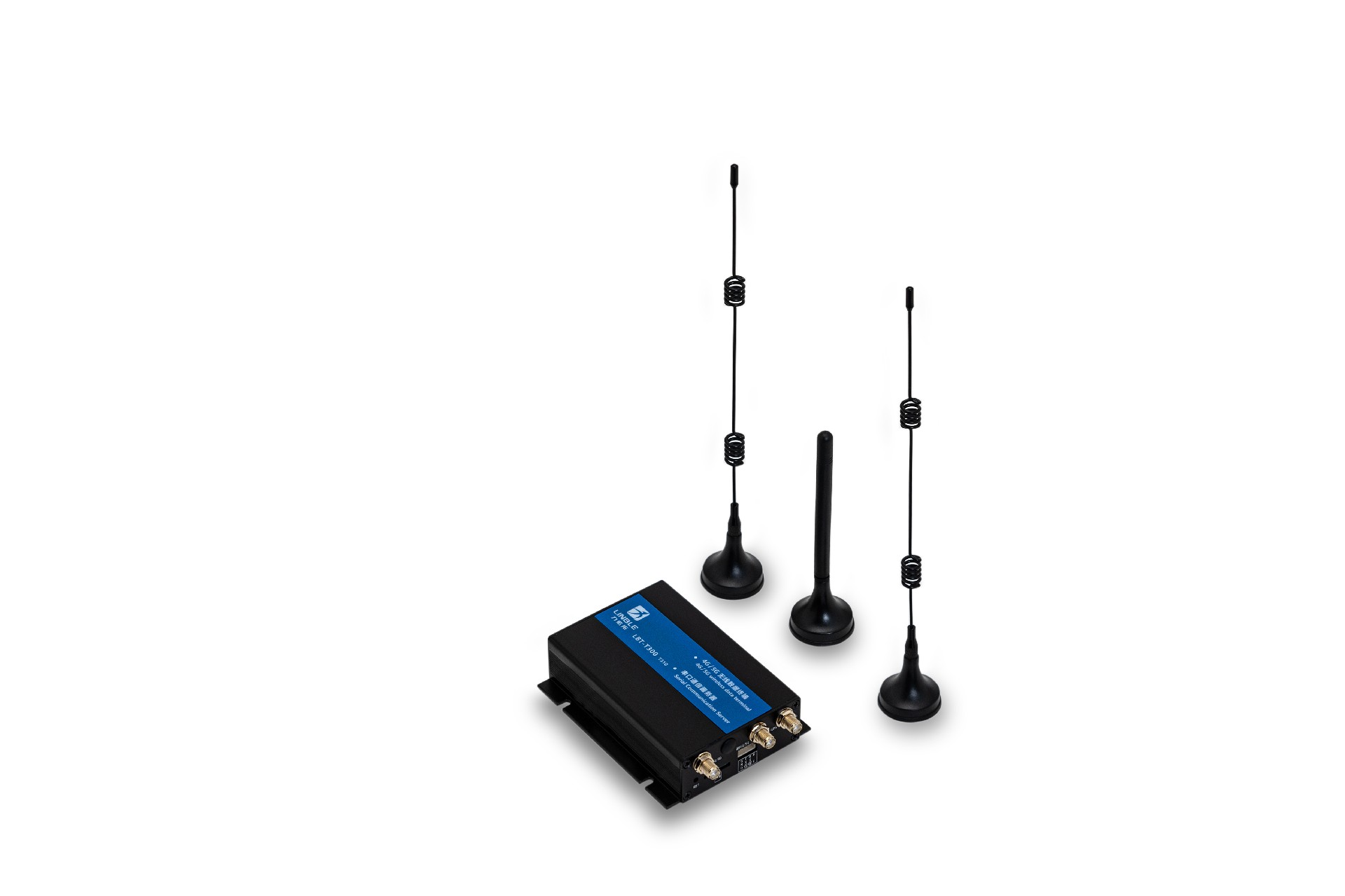

4G industrial router for remote monitoring / solar / vending
T300-310G industrial wireless router is a wireless communication product with excellent performance developed by Shenzhen Libiton Technology Co., Ltd. based on the demand of 4G network. It is mainly used in the data transmission
business of industry users, supporting transparent data transmission, image transmission, equipment monitoring and wireless routing Internet access and other functions.
The T300-310G uses an embedded high-performance CPU to effortlessly handle advanced applications such as routing and security, and can be paired with a variety of 4G industrial communication modules (TDD - LTE/FDD-LTE
networks). Provide 10/100M Ethernet port, WIFI wireless interface and serial port. A variety of terminal devices can be docked
Support WEB configuration mode, convenient and simple management, and support remote cloud control.
1. Ultra-small volume, length and width are only 96.4 * 67.5 * 30 mm;
2, industrial protection interface, easy to install;
3. Adopt metal shell with protection grade of IP30;
4. Wired + wireless router solution;
5. Support 802.11 B/G/n protocol, up to 300Mbps;
6. Wired support 1 WAN or 1 LAN, 10M/100M adaptive;
7. Software and hardware watchdog anti-crash design, after the router is disconnected, it will automatically power off and restart to ensure stable and reliable operation of the equipment;
8. automatic detection of network disconnection, automatic restart of dialing failure, timing restart and other functions;
9. Serial port transparent transmission function. The command control mode can be entered through the serial port to control the router and ancillary equipment;
10. Port mapping, DMZ host and other functions;
11. Support VPN (PPTP Client, L2TP Client);
12. Optional GNSS positioning module, supporting RTK technology and multiple systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) hybrid engine);
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 310-G-CN-5GA-W4-S1-RS485; Version 310-G, China 5G domestic solution, single band WiFi4, single card, protocol RS485, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 96.4*67.5*30mm(L×W×H)(antenna interface excluded) |
Power supply | Dc power supply: 12-24V / 1A |
GPS | Customizable GNSS positioning module, supporting RTK technology, and capable of using a variety of satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) as a mixed engine. |

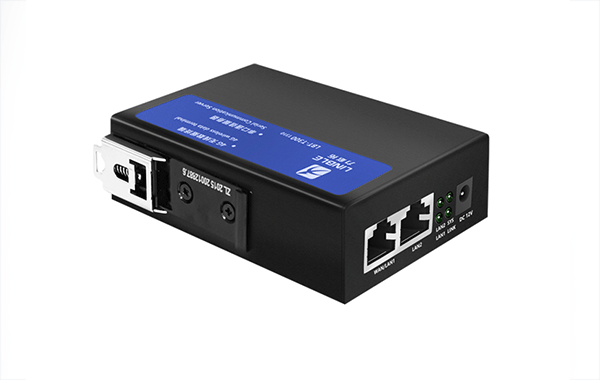

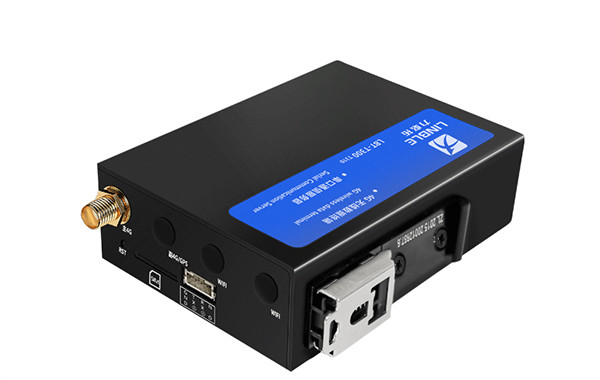

External interface Protection grade | Reset key: 1 Indicator lights: 4 Antenna interface: 1-4 (optional) SIM card slot: 1 DC power interface: 1 (2.1mm round head power interface) RS 232/485 interface: 1 (optional)(2.0mm 4-pin connector) LAN ports: 2 (LAN 1 is WAN/LAN adaptive) Protection level: IP30 |
Indicator light | LINK, SYS, WAN/LAN1 to LAN2 |
Antenna | SMA external rotating inner hole |
Storage memory | Storage :8MB, memory: 64MB |
Authentication | CE, FCC, CCC |
Power consumption (current) | 4G: less than 400 mA 5G: less than 800mA |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | 4G Internet Protocol: 4G Dial-up Internet via DHCP/Static IP/PPPoE Supported User Count: Wired: 253, Wireless: 30 VPN Protocols: PPTP Client, L2TP Client (supported only in dedicated network version) Wi-Fi Protocols: IEEE 802.11b/g/n Network Features: NAT, DNAT, DMZ, Port Forwarding |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 |
Operating frequency band | 2400-2483.5 MHz |
WiFi transmission Rate/Data | Transfer rate: 300Mbps(MAX) (theoretical maximum) WiFi data: 802.11n:-66 dBm at 300 Mbps/HT 40 MCS7:+1 3.5 dBm 802.11b:-86dBm at 11Mbps/CCK :+18 dBm 802. 11g:-73dBm at 54Mbps/OFDM: +1 3 .5 dBm |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 |
Product packaging size/weight
Product weight (g) | 285g |
Product dimensions (mm) | 96.4*67.5*30mm |
Packaging size (cm) | 25*16*7cm |
Product packaging weight (kg) | 0.5kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 24kg |
Optional frequency bands
4G band | CN(Domestic - default) : FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU(Europe) : FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 NA(North America) : FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA(South America) : FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J(Japan) : FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL(Global) : FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional) | CN(Domestic/Asia) : 5G NR NSA:N41/N78/N79 5G NR SA:N1/N8/N28/N41/N78/N79 LTE-FDD:B1/B3/B5/B8 LTE-TDD:B34/B38/B39/B40/B41 WCDMA:B1/B8 5G DL 4x4 MIMO:N41/N78/N79 |

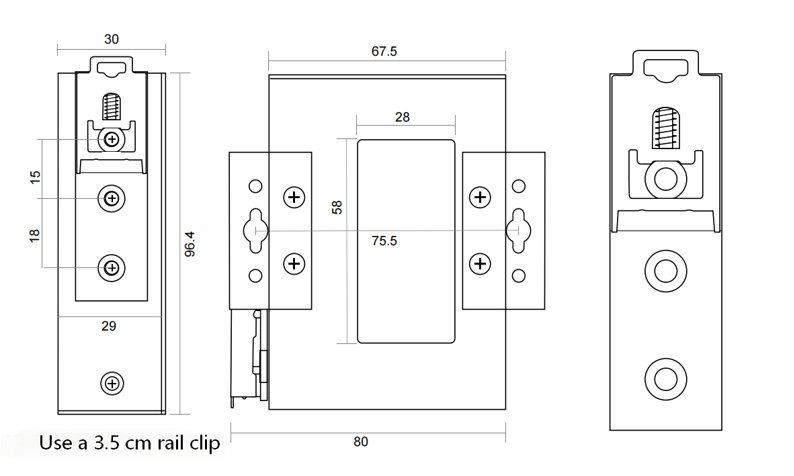

Housing positioning holes

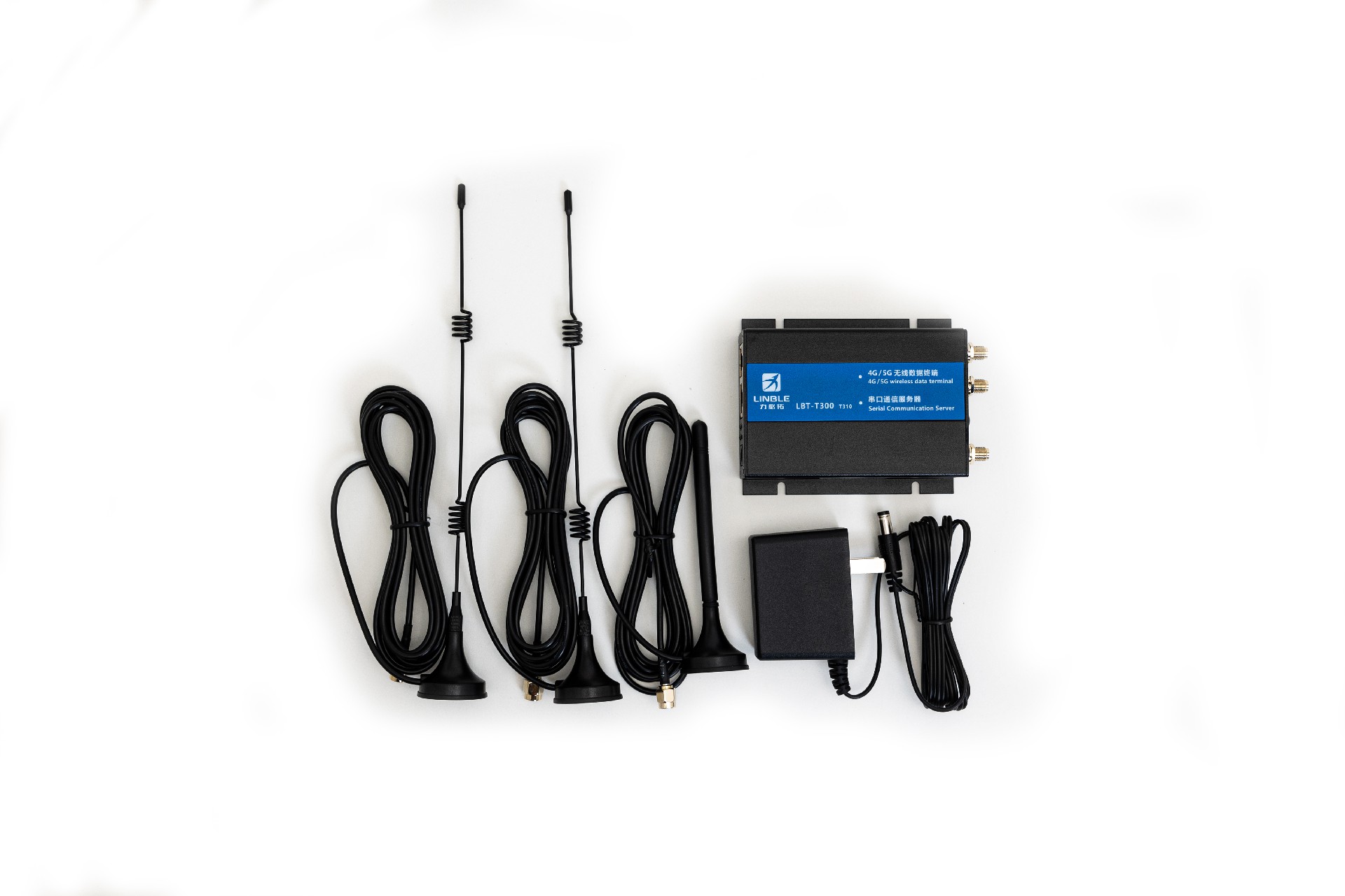

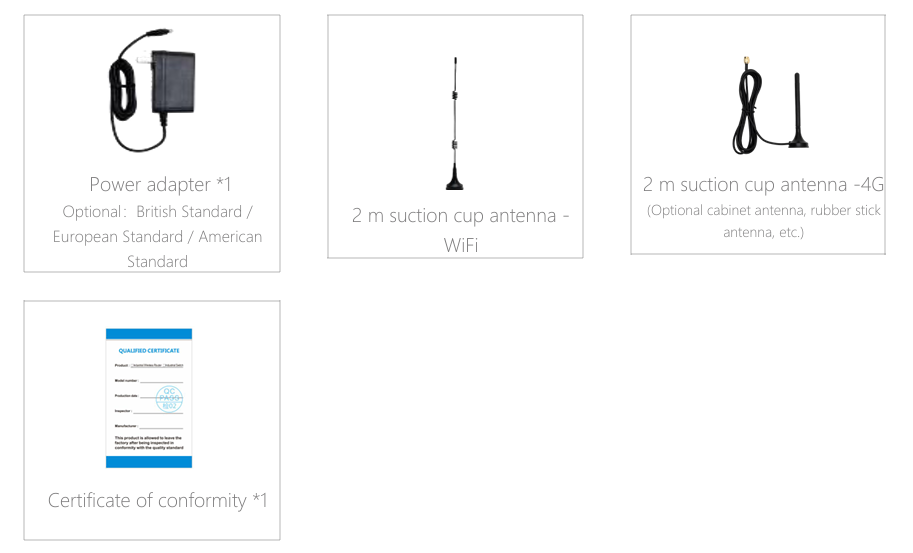

Standard accessories
