4G industrial router for remote monitoring / solar / vending
Product overview
The 4G/5G industrial wireless router is a wireless WiFi6 communication product with excellent performance developed based on 4/5G network requirements. It is mainly used in the data transmission business of industry users, supporting transparent data transmission, image transmis- sion, equipment monitoring and wireless routing Internet access and other functions.
With embedded high-performance CPU, it can be matched with a variety of 4G industrial communication modules (TDD-LTE/FDD-LTE, SA/NSA network). It provides 10/100/1000 Ethernet port, WiFi wireless interface and serial port, and can be connected to various terminal devices.
Support WEB configuration mode, convenient and simple management, and support remote cloud control.
Product features
Dual high performance industrial 4G/5G communication modules (optional single mode and dual mode) and 1800Mbps WiFi 6 wireless chip
Support 5G NR Sub6 (SA/NSA), 5G NR mmWave,5G RedCap,4G (FDD-LTE/TDD-LTE), 3G (WCDMA)--Need to choose
Supports IEEE802.11b/g/n/ac/ax protocols with a maximum transmission rate of 1774Mbps
Metal casing, protection grade IP30
Standard five gigabit adaptive RJ45 (Ethernet) interfaces with built-in lightning protection 3000V (customizable)
Wide voltage and current input: DC7-35V/3A, anti-reverse connection, EHV automatic power-off protection
Software and hardware watchdog anti-crash design, after the router is disconnected from the network, it will automatically restart after power failure to protect the stable and reliable operation of the equipment.
Automatic detection of network disconnection, automatic restart of dialing failure, customized restart and other functions
It supports the functions of MQT T and serial port transmission, and can enter the command control mode through the serial port. The controls the router and accessory devices.
Supports more than 25 DDNS providers
Internal network penetration: port forwarding, DMZ
Supports Pptp/L2tpVPN Client, Ipsec/OpenVPN Client, Ipsec/OpenVPN Sever
Optional GNSS positioning module, supporting RTK technology, supporting multiple satellite systems (GPS, GLONASS, Beidou, WA AS, EGNOS, MSAS, GAGAN, hybrid engine)
Support cloud device management platform
Support personalized software customization
Countries | 4G/5G network solutions | Wireless network | Number of slots | Serial port Protocol | Custom content |
CN= China Version EU= European version NA= North American version GL= Global Edition SA= South American version JP= Japanese version AU= Australian version | A= Domestic Q= Qualcomm V=4G private network R=Redcap H= hisilicon | W0= No WiFi W4=WiFi4 W5=WiFi5 W6=WiFi6 | S1= Single card S2= Dual cards | RS232 RS485 TTL | DO POE GPS ESIM |
Example: 1800-CN-5GA-W6-S1-RS485&232; Version 1800, China 5G domestic solution, single band WiFi6, single card, protocol RS485&232, no customization Note: Some versions do not allow customization of the above content. | |||||
Hardware Parameters
Product size | 149*126*46mm (Length×Width×Height) (excluding the fixed ear and antenna) |
Power supply | DC power supply: 7-35V/3A, reverse polarity protection, surge protection |
GPS | Customizable GNSS positioning module, supporting RTK technology, and capable of using a variety of satellite systems (GPS, GLONASS, Beidou, WAAS, EGNOS, MSAS, GAGAN) as a mixed engine. |

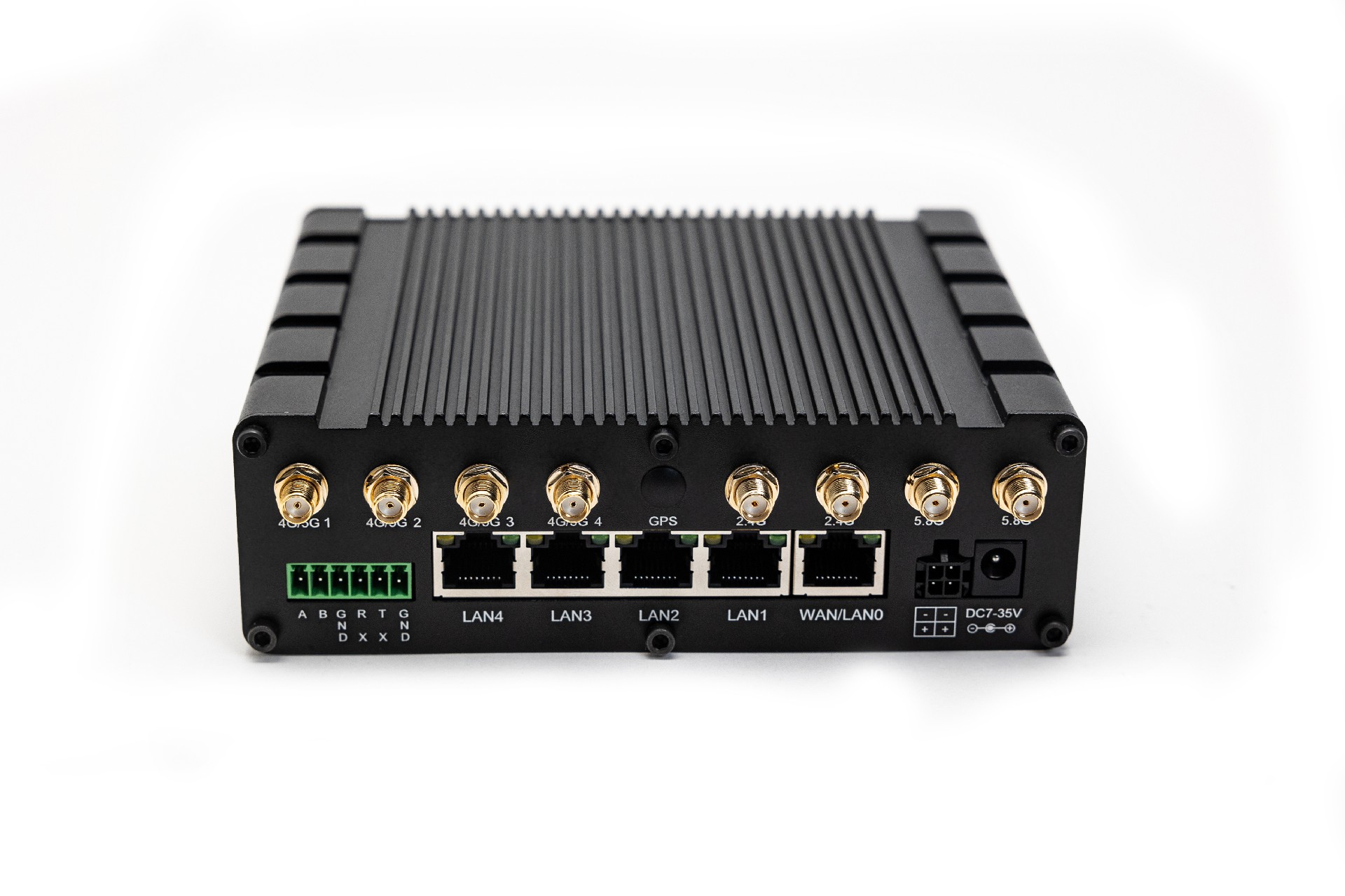

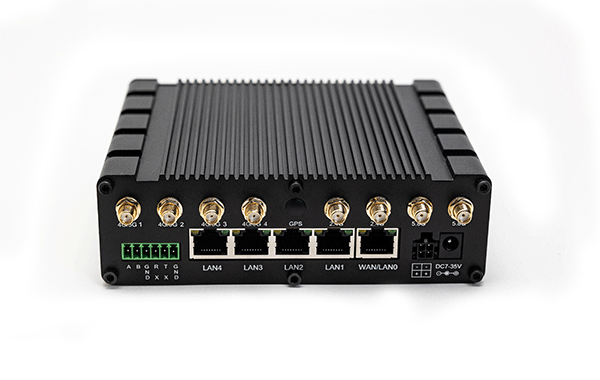

External interface Protection grade | Reset key: 1 Indicator lights: 6 Antenna interface: 2-13 (optional) SIM card slot: 1 Power: 4-pin 2.5mm industrial DC power socket, 2.1mm x 5.5mm center pin DC jack RS232 & RS485 interface: 1 (3.5mm 6-pin EDGK socket, supports standard RS485 and RS232 serial protocols) LAN ports: 5 (LAN1 is WAN/LAN adaptive), 3kV lightning protection (customizable), POE input (customizable) Protection rating: IP30 |
Indicator light | LINK, SYS, WAN/LAN1 to LAN2 |
Antenna | SMA external rotating inner hole |
Storage memory | Storage :8MB, memory: 64MB |
Authentication | CE, FCC, CCC |
Power consumption (current) | 4G: less than 400 mA 5G: less than 800mA |
Operating temperature Humidity | Operating temperature: -20 to +70 ° C Storage temperature: -40 to +80 ° C Humidity: 5 to 95% (non-condensing) |
Feature Data
Basic Features | Internet Protocol: 4G /5G dial-up DHCP/Static /PPPoE dial-up /WiFi relay Number of supported users: Wired: 253, wireless: 128 WiFi Protocol: IEEE802.11b/g/n Network functions: NAT, DNAT, DMZ, port forwarding Port protocols: MODBUS, MODBUS slave, MQTT gateway | |
VPN | OpenVPN Client、 IPSecVPN Client、PPTP VPN Client、L2TP VPN Client | |
Operating frequency band | 2412-2472MHz、5180-5825Mhz | |
WiFi transmission Rate/Data | Transmission Rate: 1800 Mbps (MAX) Wi-Fi Data: 2.4G Speed: 573 Mbps (Max) 2.4G Power: 21 dB (-2 dBm+) 5.8G Speed: 1201 Mbps (Max) 5.8G Power: 21 dB (-2 dBm+) | |
Firmware customization | Operating System: Linux operating system based on OpenWrt Supported languages: BusyBOS sheel,Lua,C,C++ Development tools: Provide SDK packages with built-in environments and contact us for custom development based on requirements documentation | |
WLAN Security Consultative | OpenSystem, WPA-PSK, WPA2-PSK, WPAPSK/WPA2 PSK, WPA1 / WPA2 | |
System Services | Virtual servers, port triggers, serial port services, firewalls, MAC filtering, access control, port blocking, regional Settings, factory reset, NTP server Settings, backup system information, software upgrades, remote management | |
Operating system Browser Requirements | System :Windows XP/VISTA, Linux 2.6, Windows 7 , MAC OS: 1 0.3.7 ; Browser :IE:6.0 Safari:1.2.4 Firefox:2.0.0.8 | |
Device Management | WEB UI | HTTP/HTTPS, status, configuration, local firmware updates, troubleshooting, Syslog |
FOTA upgrades | Cloud platform server update | |
SSH/TELNET | SSH(v1,v2), telnet | |
TR-069 | OpenACS, EasyCwm p, ACSLite, tGem, Libre ACS, Genie ACs, Free ACS, LibCWMP, Friendly tech(customizable) | |
SNMP Network Management | SNMP(v1, v2, v3)(customizable) | |
Remote Interface Protocol | API management based on HTTP/HTTPS (customizable) | |
MODBUS | MODBUS TCP Status/Control (customizable) | |
Product packaging size/weight
Product weight (g) | 1100g |
Product dimensions (mm) | 149*126*46mm |
Packaging size (cm) | 385*220*64cm |
Product packaging weight (kg) | 1kg |
Outer box dimensions (cm) | 71.3*44.3*26.8cm |
Container weight estimate (kg) | 22kg |
Optional frequency bands
4G band | CN：FDD-LTE B1/3/5/8 TDD-LTE B38/39/40/41 EU：FDD-LTE B1/3/5/7/8/20 TDD-LTE B38/39/40/41 AU:FDD-LTE B1/3/5/7/8/20/28 TDD-LTE B38/40/41 NA：FDD-LTE B2/3/4/5/7/8/12/13/17/25/26/66 TDD-LTE B41 SA：FDD-LTE B2/4/5/7/8/28 TDD-LTE B40 J：FDD-LTE B1/3/8/18/19/26 TDD-LTE 41 GL：FDD-LTE B1/2/3/4/5/7/8/17/20/28 TDD-LTE B38/39/40/41 |
5G band (Optional) | CN：5G NR NSA:N41/78/79 5G NR SA:N1/8/28/41/78/79 LTE-FDD B1/3/5/8 LTE-TDD：B34/38/39/40/41 EA：5G SA&NSA:N1/3/5/7/8/20/28/38/40/41/71/77/78/79 LTE-FDD：B1/3/5/7/8/18/19/20/28/32 LTE-TDD：B34/38/39/40/41/42 GL5GNR SA：n1/2/3/5/7/8/12/20/25/28/38/40/41/48/66/71/77/78/79 5G NR NSA：n38/41/77/78/79 LTE-FDD： B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71 LTE-TDD：B34/38/39/40/41/42/43/48 |

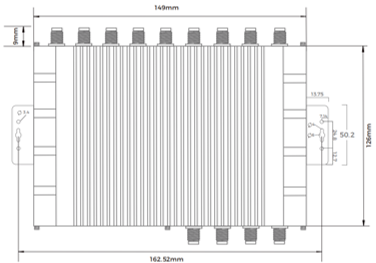

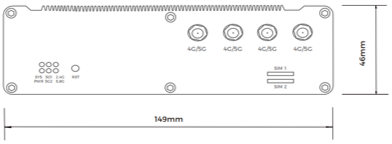

Housing positioning holes

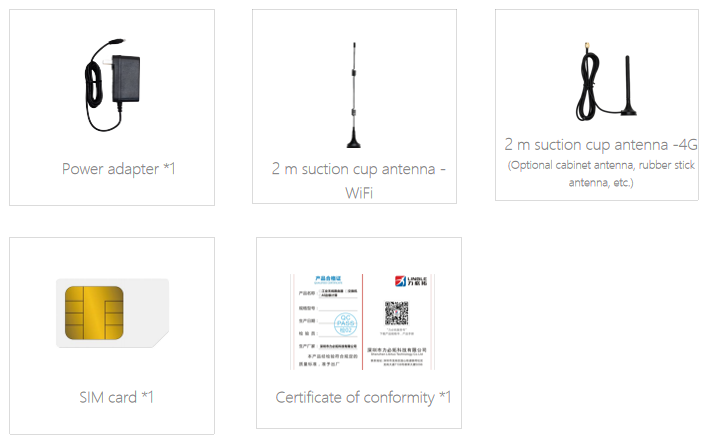

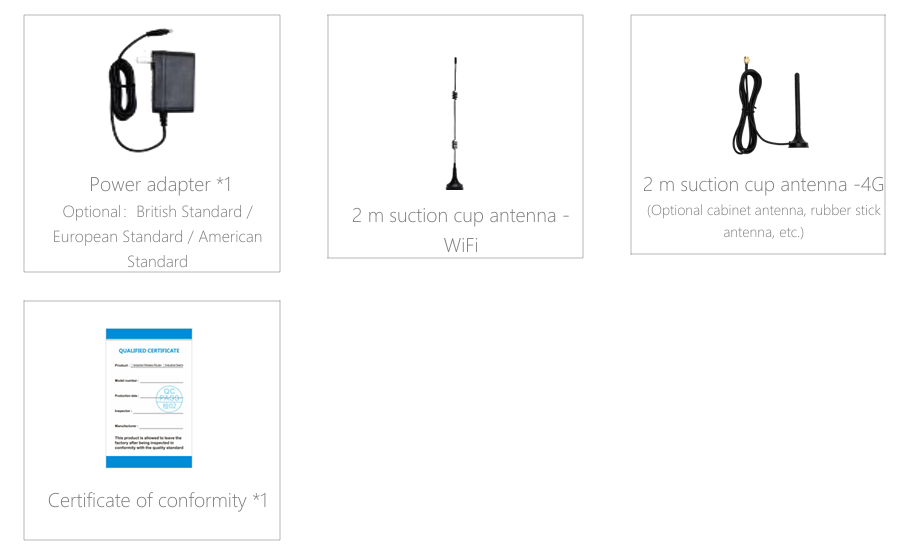

Standard accessories
