Specifications:

Model No.LBTD216G
10/100/1000Base-TX Port

16 port RJ-45 auto-MDI / MDI-X

2 port SFP

Performance Specification

Bandwidth: 56Gbps

Packet Buffer Memory:4.1Mbit

Packet Forwarding Rate:42Mpps

MAC Address Table: 8K

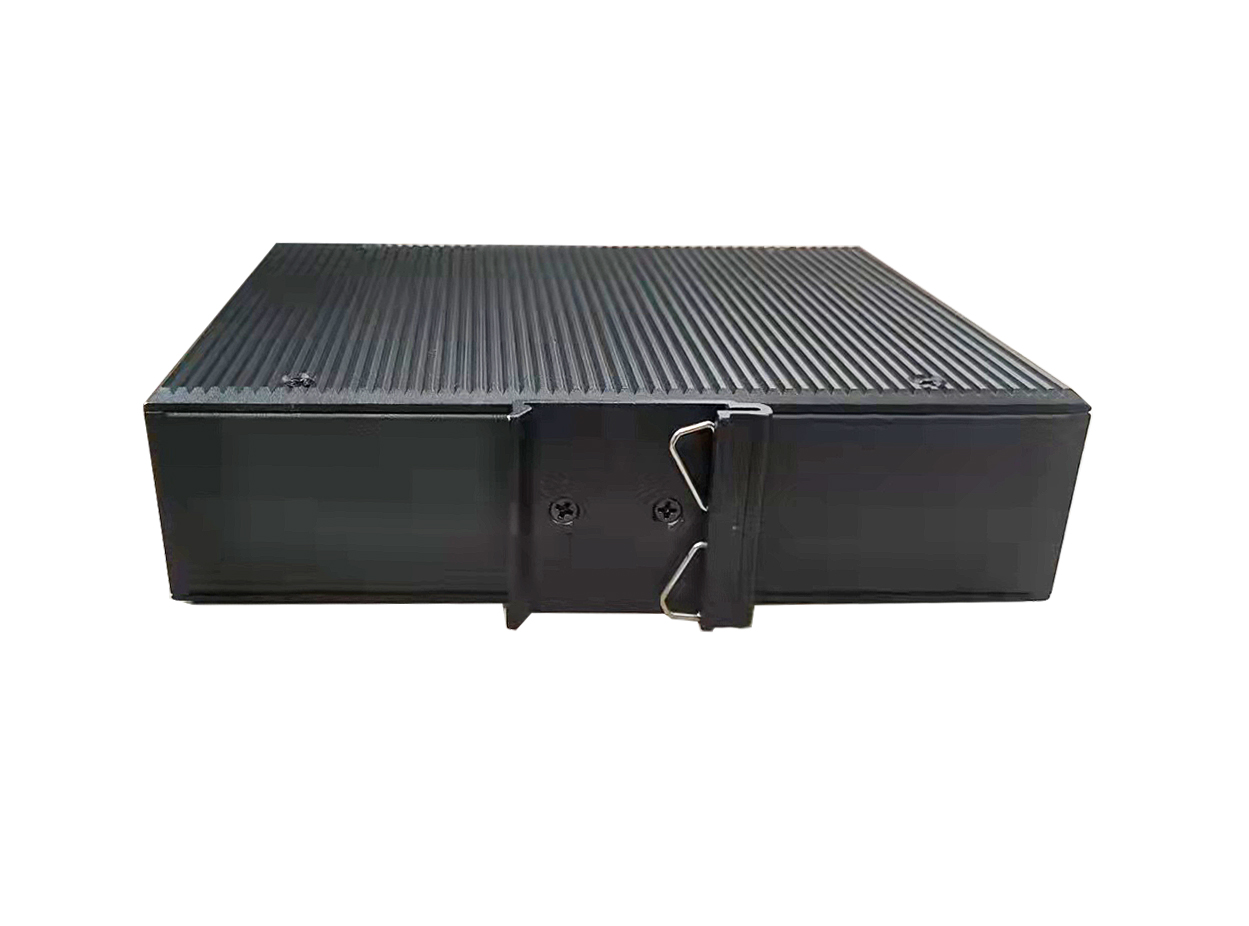

InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
LED Indicator

Power: Red

Ethernet: Yellow

POE: Green

P.S ZXD216G not with PoE function


Power Input12 to 52V DC redundant power
Power Consumption10 watts
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;


Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤10meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

IEC 61000-4-4 (EFT), Level 3

IEC 61000-4-5 (Surge), Level 3

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6


MTBF>300,000hours
CertificationCE FCC Rohs compliance
Dimensions (W x D x H)175.6 x 135 x 45.5 mm
Weight

Product Weight: 0.9KGS

Packing Weight: 1.0KGS

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty1-year replacement with new item; 3-years for main parts.
