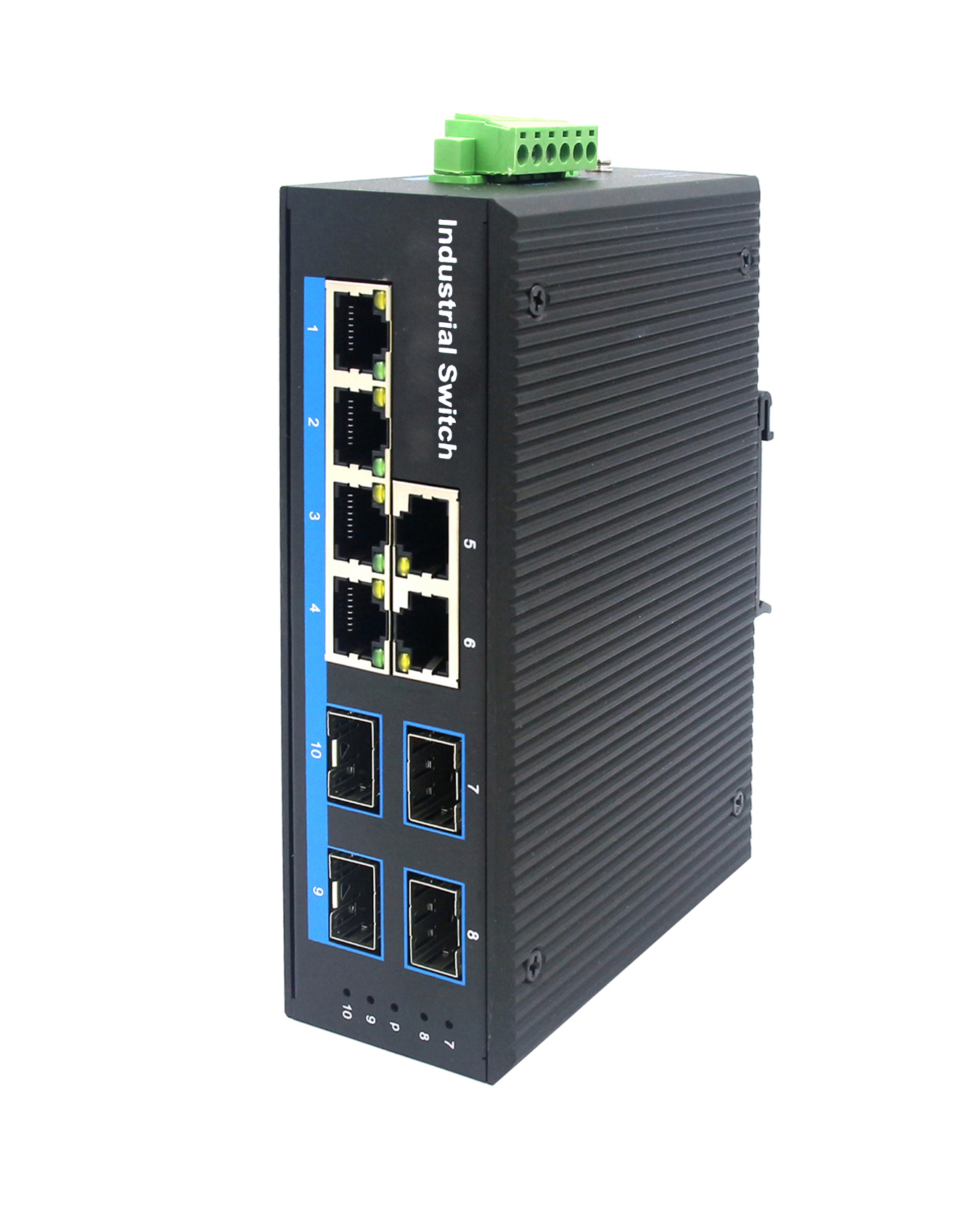

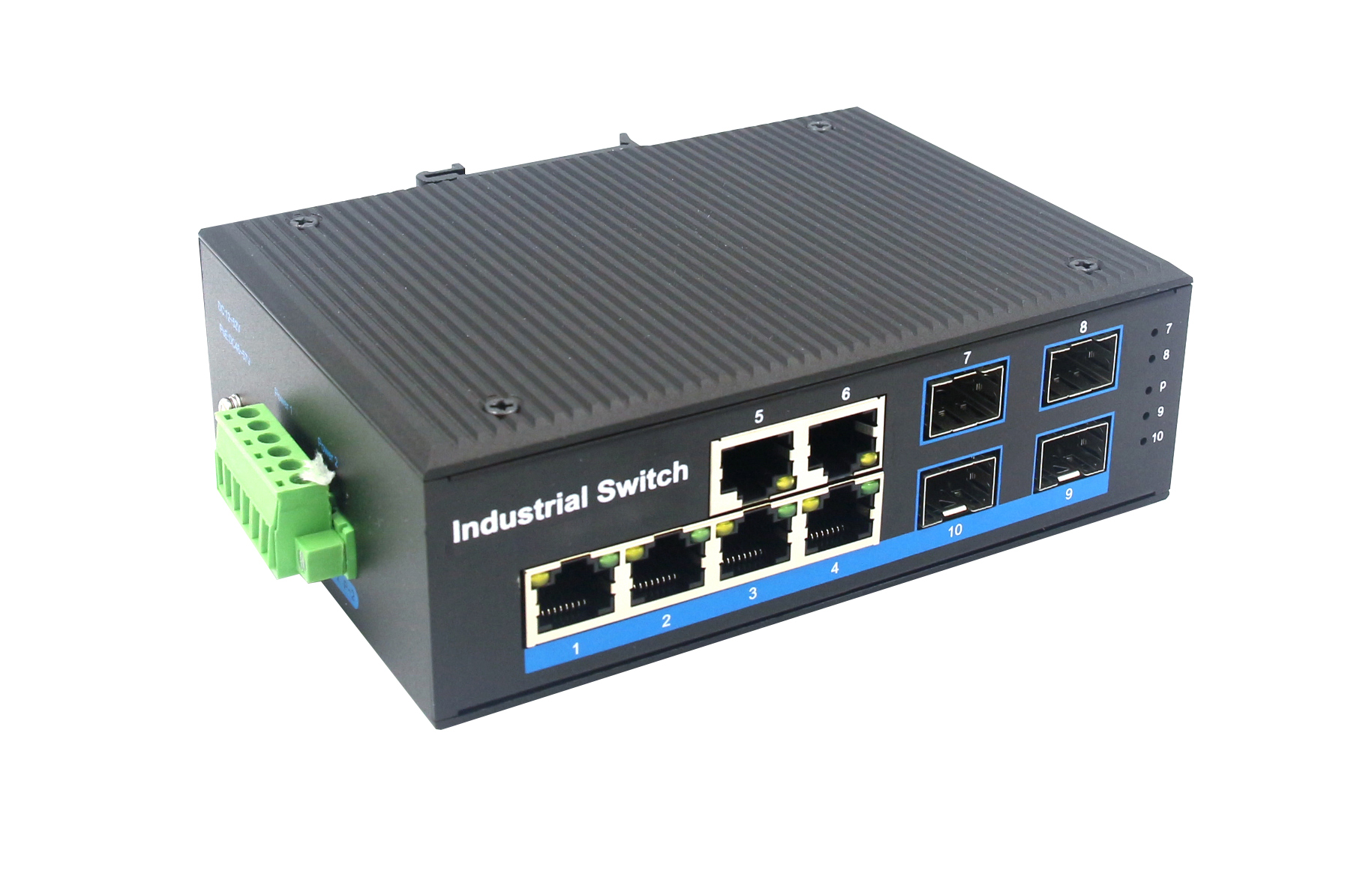

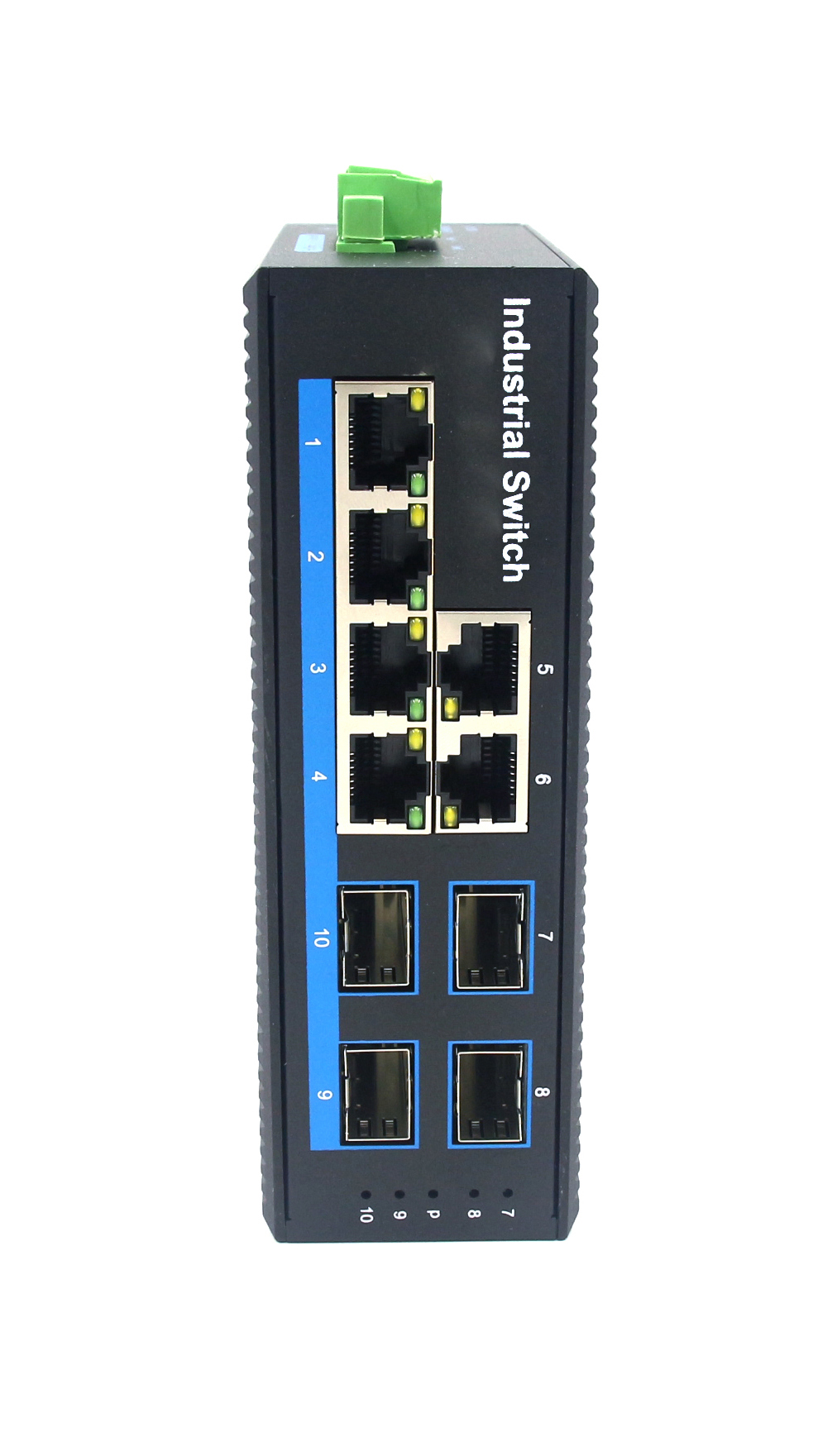

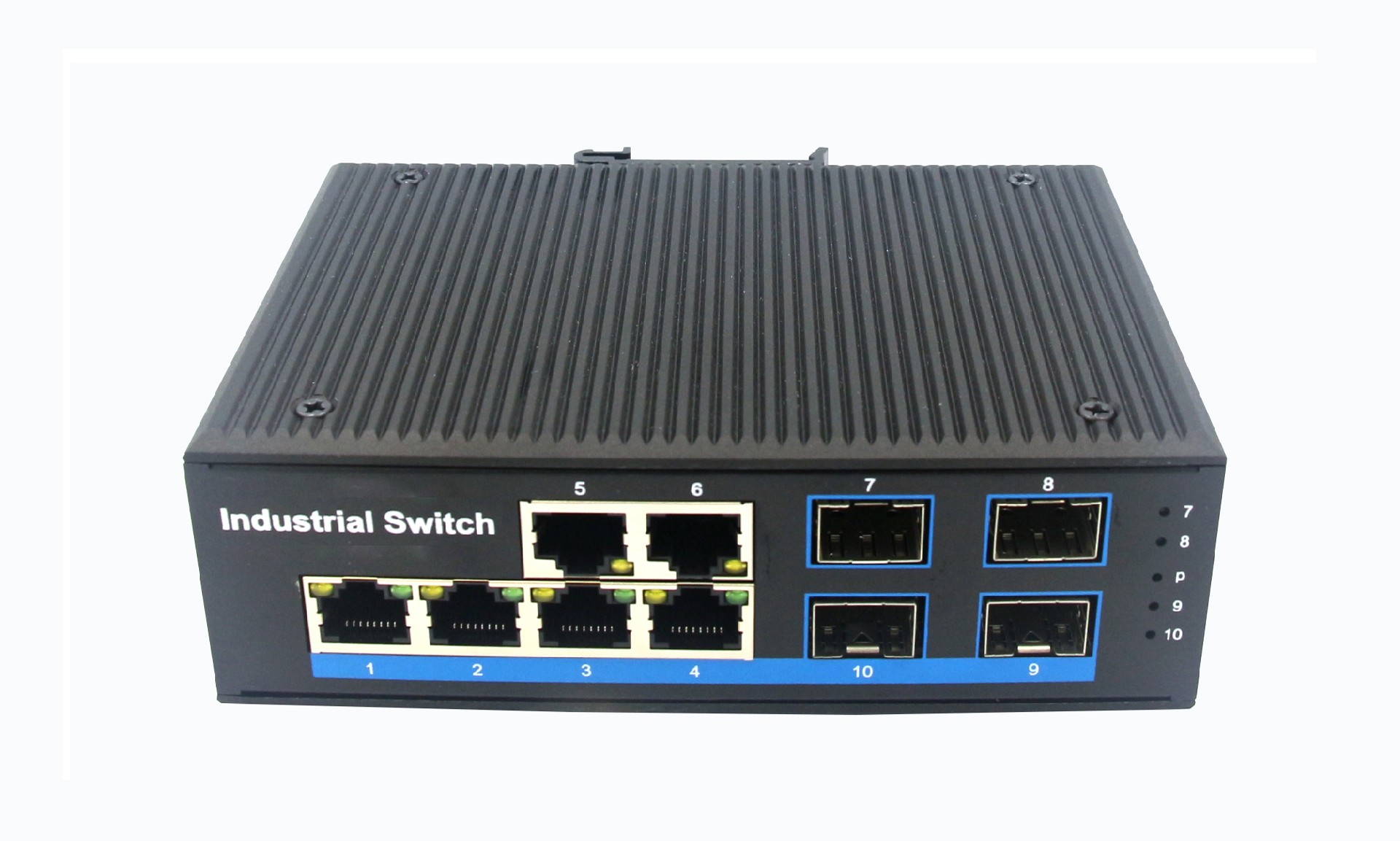

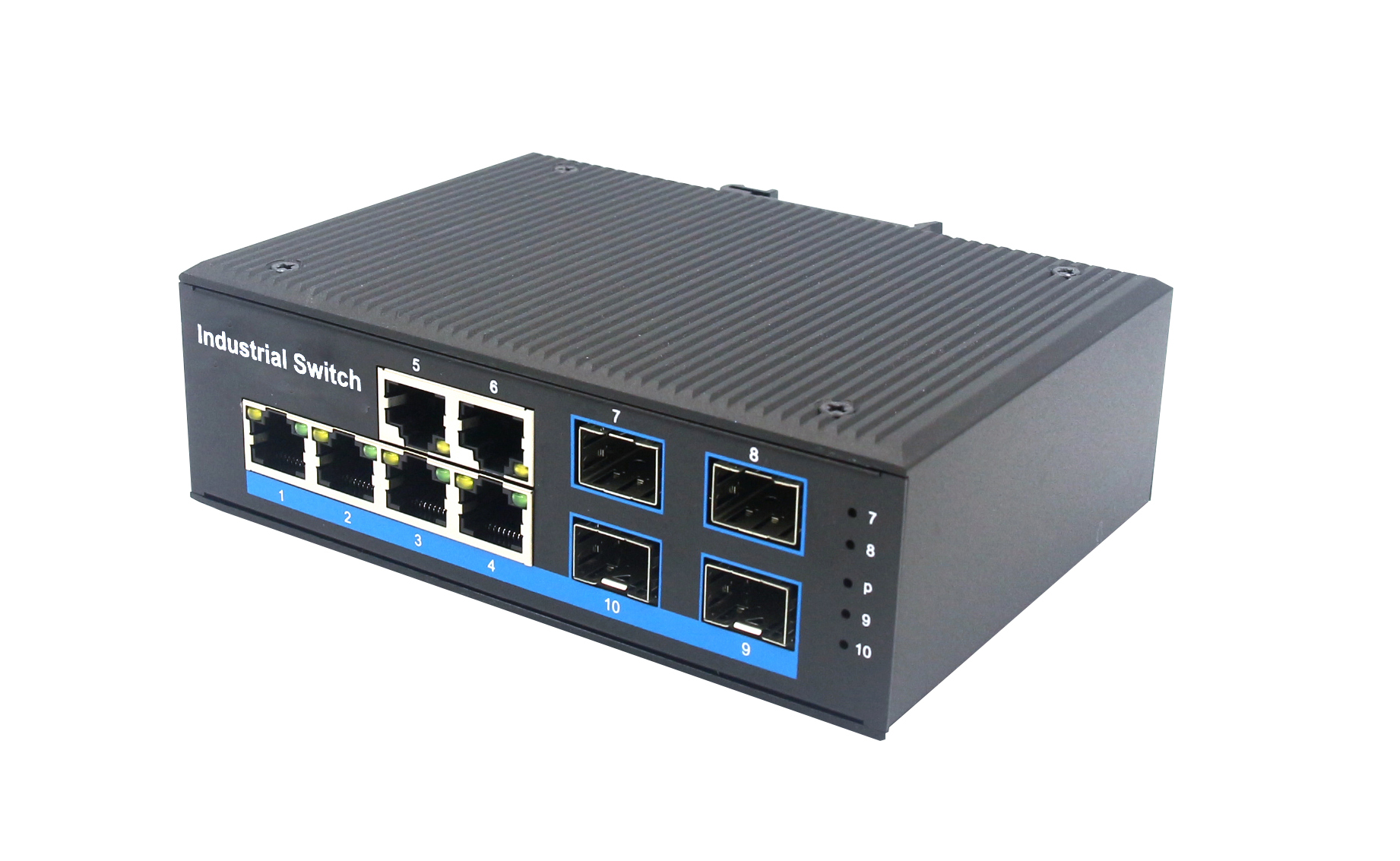

LBTD46G-SFP

  • Product details
  • Data download
  • Video and Documents


Specifications:

Model No.LBTD46G-SFP
10/100/1000Base-TX Port6 port RJ-45 auto-MDI / MDI-X
1000Base-FX Port

LBTD46G-SC2: 4 SC interface

LBTD46G-SC20: 4 SC Interface

LBTD46G-SFP: 4 SFP Slot


Fiber Port Type

LBTD46G-SC2: SC / multi-mode ,up to distance 2km ;

LBTD46G-SC20: SC / single-mode ,up to distance 20km ;

LBTD46G-SFP: Vary on module




Optical Frequency

LBTD46G-SC2: 1310nm

LBTD46G-SC20: 1310nm

LBTD46G-SFP: Vary on module


Performance Specification

Bandwidth: 20Gbps

Packet Buffer Memory:2Mbit

Packet Forwarding Rate:15Mpps

MAC Address Table: 8K

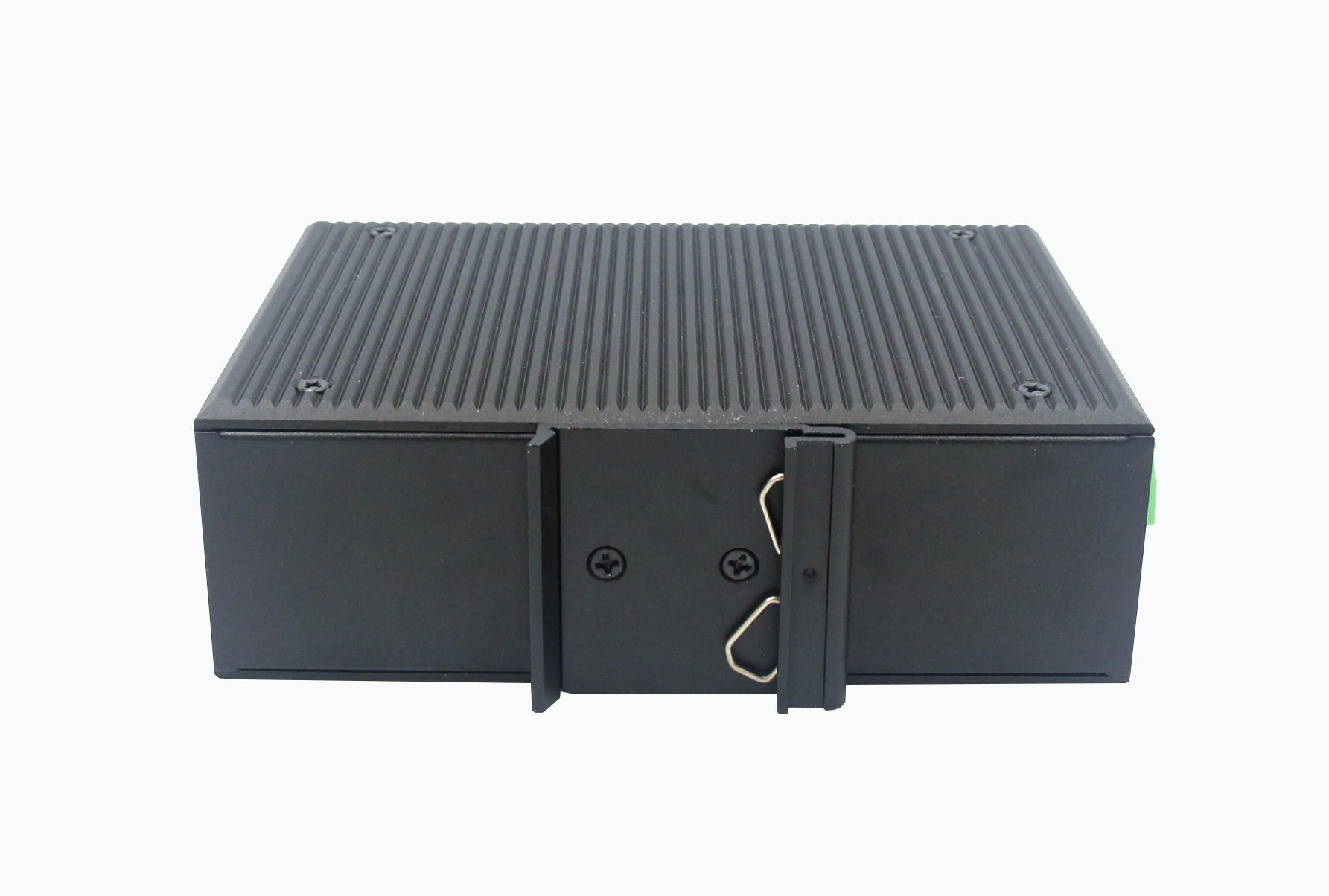

InstallationDIN rail
Maximum Frame Size9000bytes packet size
Flow ControlBack pressure for half duplex, IEEE 802.3x pause frame for full duplex
EnclosureIP40 aluminum housing
LED Indicator

Power: Red

Fiber: Link 2(Green)

Ethernet: Yellow

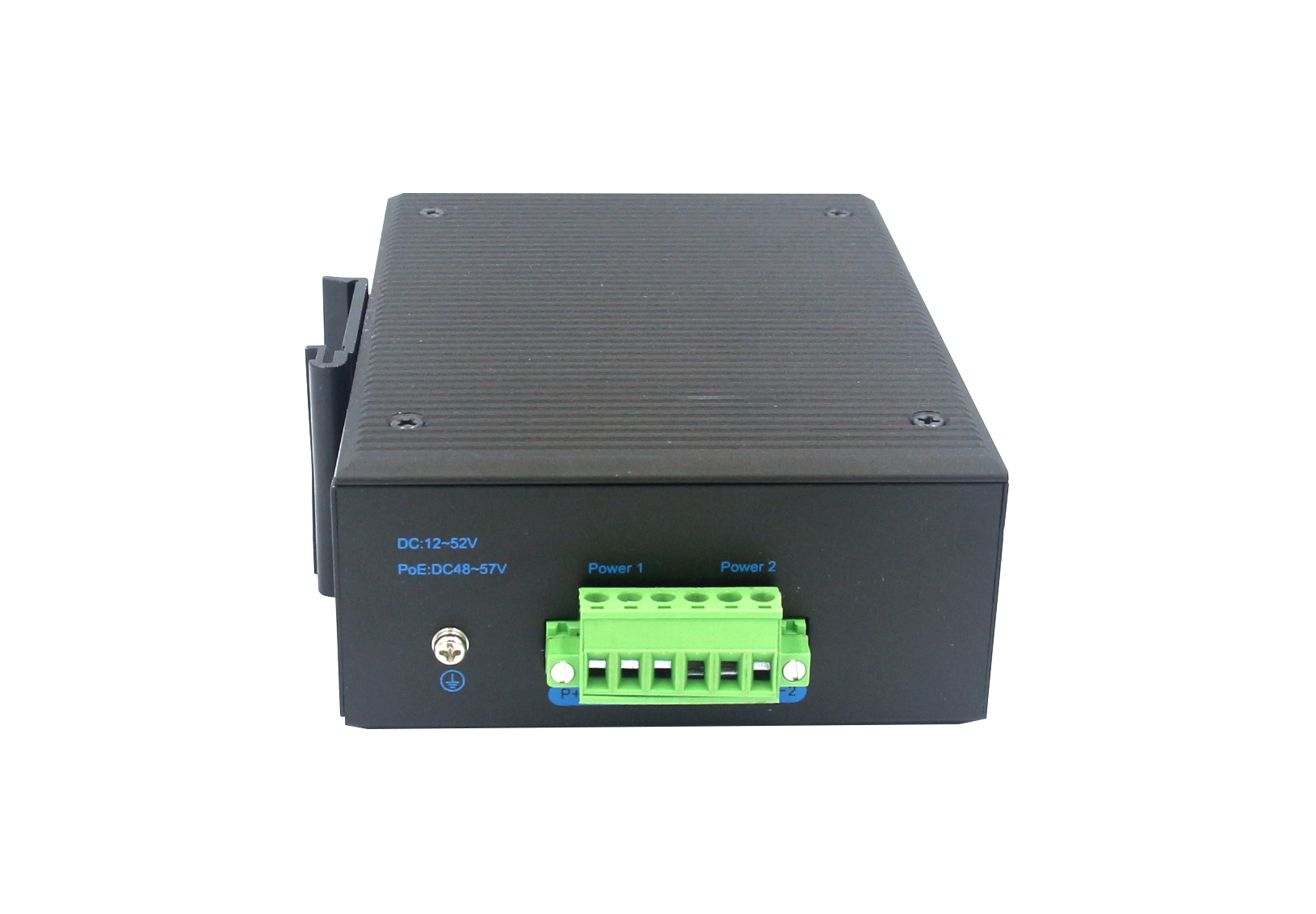

Power Input12 to 52V DC redundant power
Power Consumption< 10 watts
Surge protection±4KV
Network Protocols

IEEE802.3 10BASE-T;

IEEE802.3i 10Base-T;

IEEE802.3u;100Base-TX/FX;

IEEE802.3ab 1000Base-T;

IEEE802.3z 1000Base-X;

IEEE802.3x;


Network cables

10BASE-T: Cat3,4,5 UTP(≤100 meter)

100BASE-TX: Cat5 or later UTP(≤100meter)

1000BASE-TX: Cat6 or later UTP(≤100 meter)

Industry Standard

FCC CFR47 Part 15,EN55032, Class A

IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air)

IEC61000-4-3 (RS): 10V/m (80~1000MHz)

IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV

IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV

IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz)

IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s)


CertificationCE FCC Rohs compliance
MTBF300,000hours
Dimensions (W x D x H)143.7 x 103.8 x 47.7 mm
Weight

Product Weight: 0.72KG

Packing Weight: 0.82KG

Working Environment

Working temperature: -40～80℃ ;

Storage temperature: -40～80℃

Relative Humidity: 5%~95 %( no condensation)

Warranty1-year replacement with new item; 3-years for main parts.
