CPU

QCA9563+QCA9882+QCA8334

Flash

SPI NOR 16MB

DDR

DDR2-128MB

5G frequency

5.150GHz～5.850GHz

5G WIFI protocol

802.11 a / n /ac

Max rate

900Mbps

Antenna

Internal 18dBi directional panel antenna

5G TX Power

802.11a

54M

23±2dBm

6M

26±2dBm

802.11n HT20

MCS7

22±2dBm

MCS0

26±2dBm

802.11n HT40

MCS7

22±2dBm

MCS0

26±2dBm

802.11ac VHT20

MCS9

21±2dBm

MCS0

26±2dBm

5G Receiving Sensitivity

802.11ac VHT40

MCS9

21±2dBm

MCS0

26±2dBm

802.11ac VHT80

MCS9

21±2dBm

MCS0

26±2dBm

802.11a

54M

-75dBm

6M

-92dBm

802.11n HT20

MCS7

-72dBm

MCS0

-90dBm

5G EVM

802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；802.11AC_MCS9:≤-32dB

ppm

±20ppm

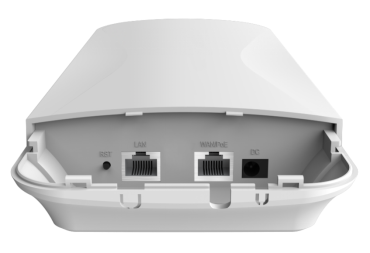

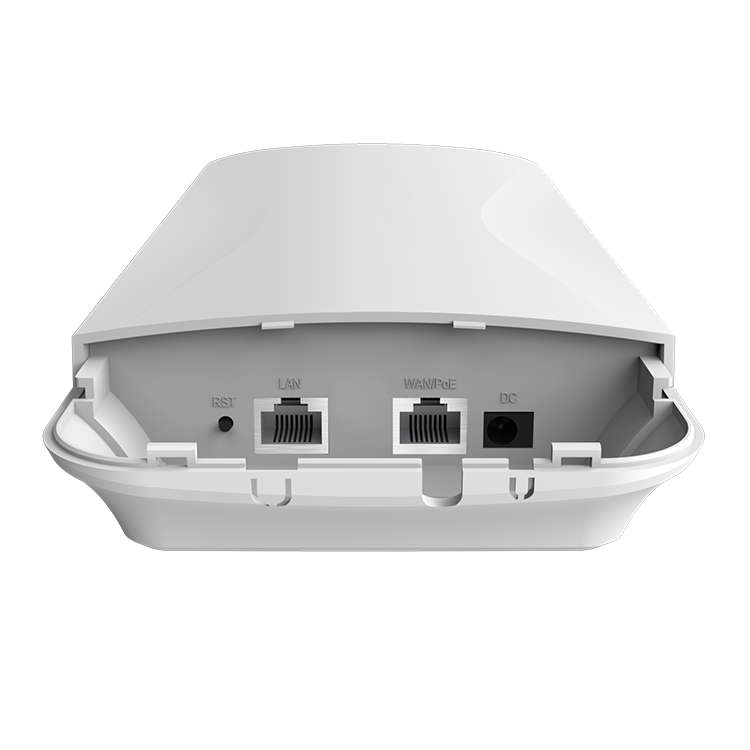

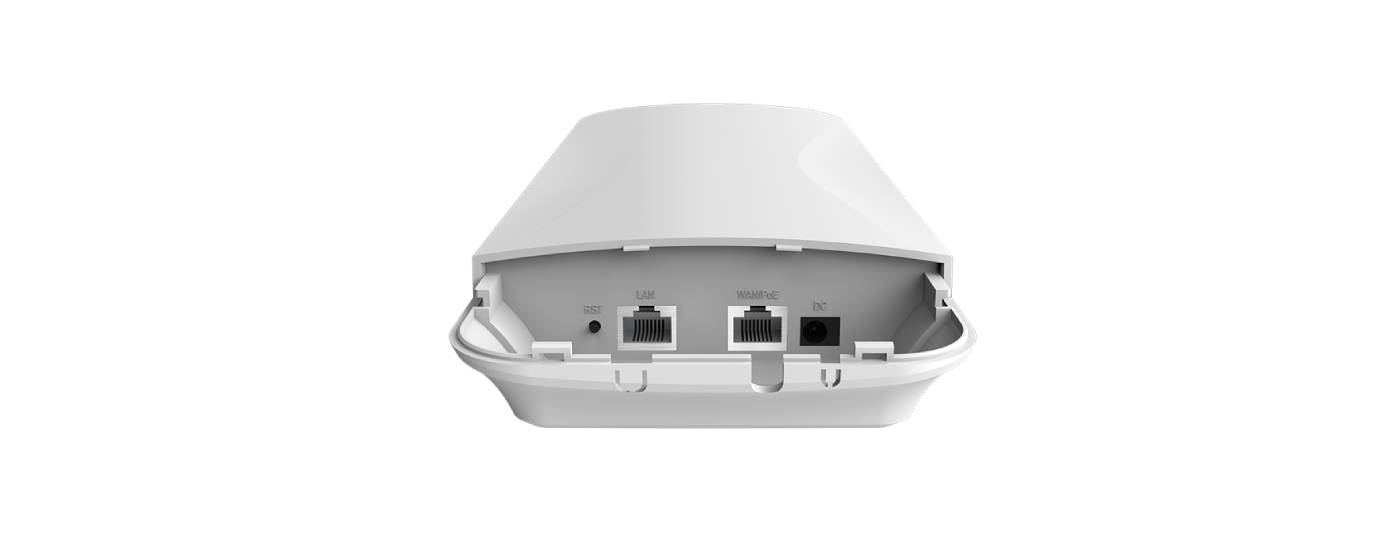

WAN

1*10/100/1000M WAN, support 24V~48V passive POE

LAN

1*10/100/1000M LAN

Power

PoE 24V passive POE, DC 12~24V

Max Power Consumption

<10W

Reset

Press 2-5 seconds for pairing, 10seconds for factory reseting.

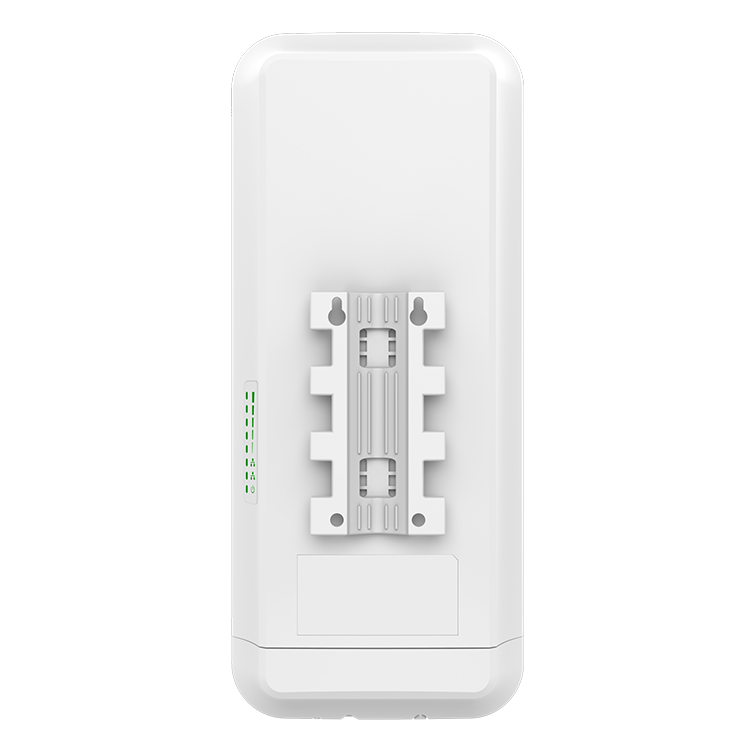

Indicators

SYS, WAN, LAN, Signal*5

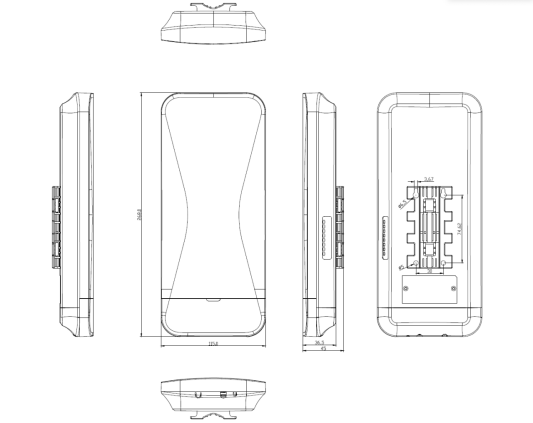

Dimension

268mm*115mm*45mm

Weight

0.48kg

Temperature

Working: -30°C to 55°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)

IP Grade

IP65

ESD

Air:±8K, Touch:±6K

Electrical Surge

Common Mode: 4K, Differential Mode: 2K

Wireless

Intelligent dynamic polling, automatic channel selection, automatic modulation mode selection, automatic transmission power control (ATPC)

Wireless Safety

WPA/WPA2 personal encryption, WPA/WPA2 enterprise encryption, WACL, user isolation

Wireless QoS

TDMA implements 4 queue priority

Network mode

IPv4 IPv6

VLAN

Support VLAN and VLAN transparent transmission

WAN protocol

Static IP，DHCP client

Service

DHCP service, SNMP service, NTP client, route tracking, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet

Built Tool

Site survey, connection testing, antenna calibration

Working frequency

5180 ~5850 MHz

Gain

18 dBi

Polarization mode

Vertical/horizontal dual polarization

Horizontal beam angle

30°

Vertical beam angle

15°

PoE adapter

1

Gift Box

1
