CPU

AR9344

Flash

16MB

DDR

64MB

5G frequency

5.150GHz～5.850GHz

5G WIFI protocol

802.11 a/ n

Max rate

300Mbps

Antenna

Internal 15dBi directional panel antenna

5G TX Power

802.11a

54M

22±2dBm

6M

23±2dBm

802.11n HT20

MCS7

21±2dBm

MCS0

23±2dBm

802.11n HT40

MCS7

20±2dBm

MCS0

23±2dBm

5G Receiving Sensitivity

802.11a

54M

-70dBm

6M

-83dBm

802.11n HT20

MCS7

-67dBm

MCS0

-83dBm

802.11n HT40

MCS7

-64dBm

MCS0

-83dBm

5G EVM

802.11a_54M: ≤-25 dB；802.11n_MCS7: ≤-28 dB；

ppm

±20ppm

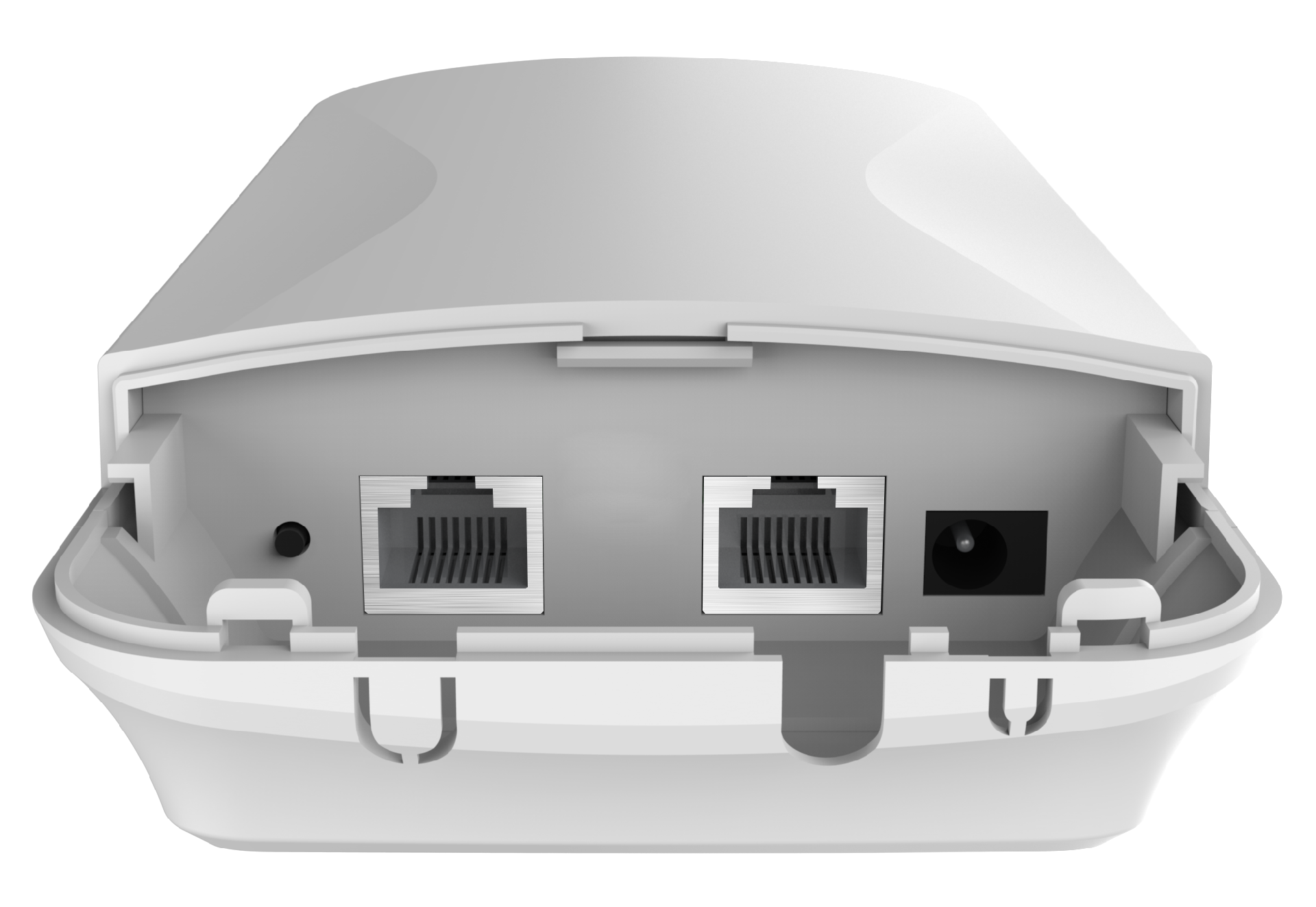

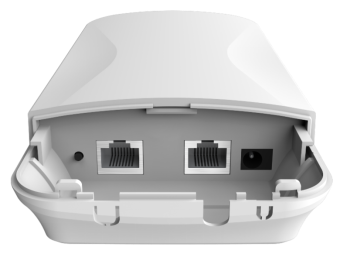

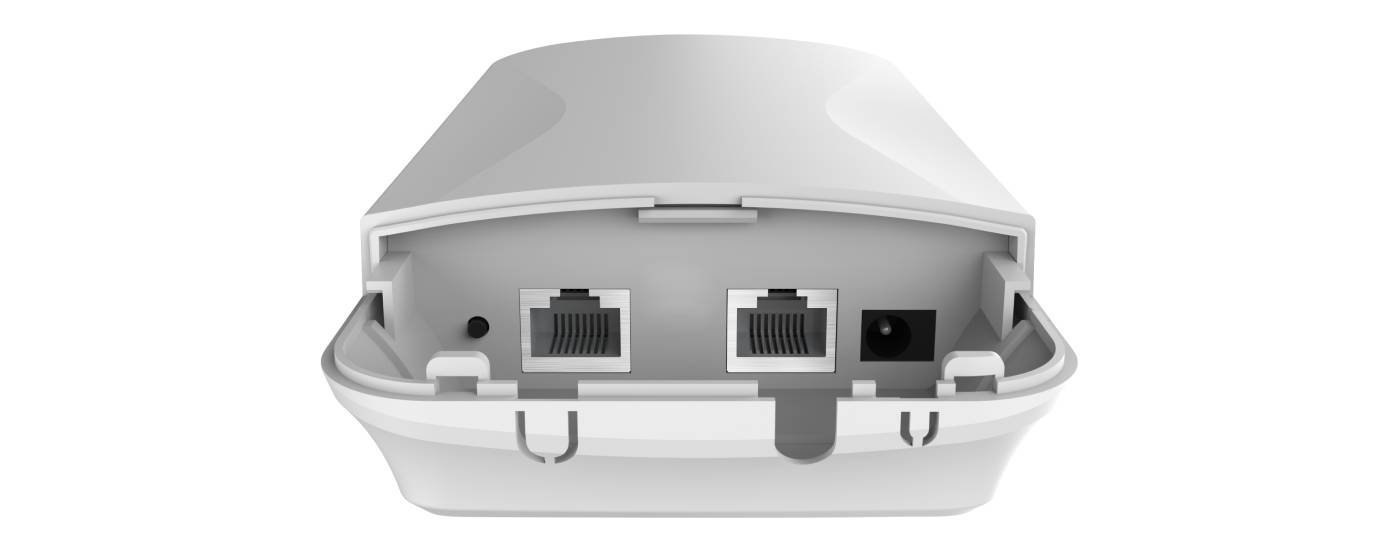

WAN

1*10/100 WAN, support 24V POE

LAN

1*10/100 LAN

Power

PoE 24V, DC 12~24V

Max Power Consumption

<8W

Reset

Press 2-5 seconds for pairing, 10seconds for factory reseting.

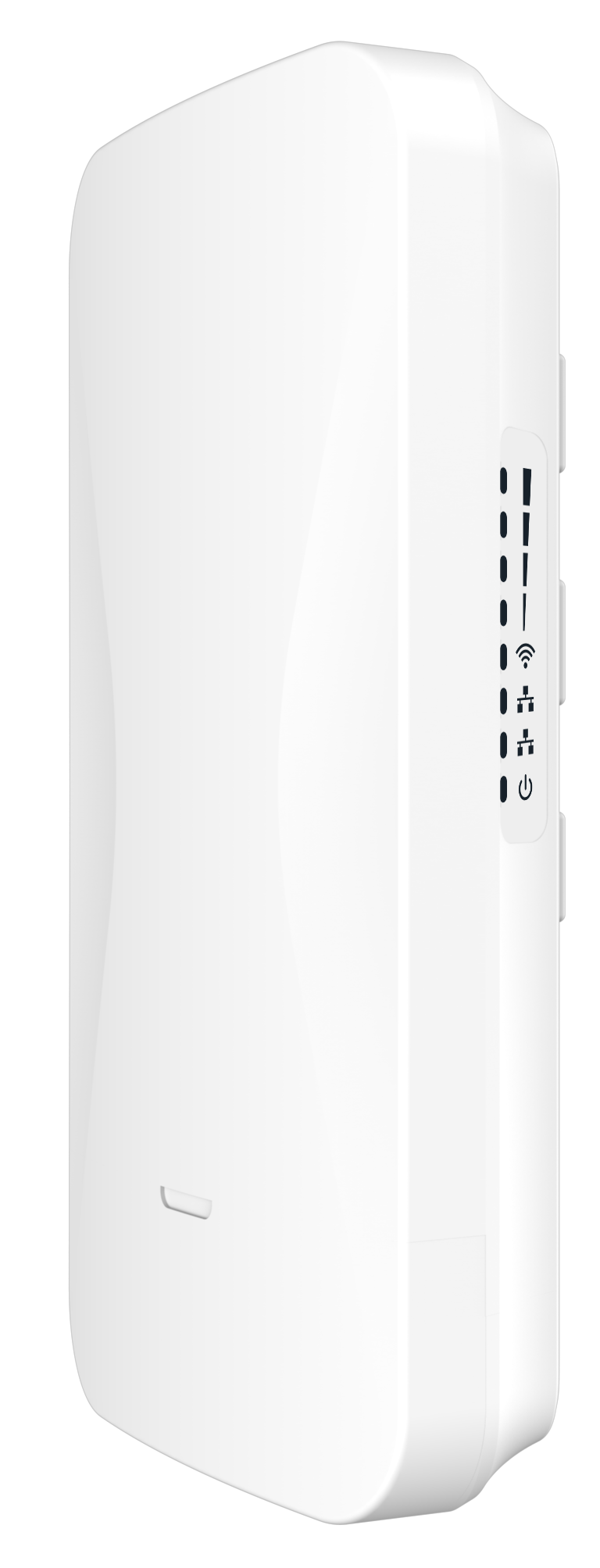

Indicators

SYS, WAN, LAN, 5G WIFI, Signal*4

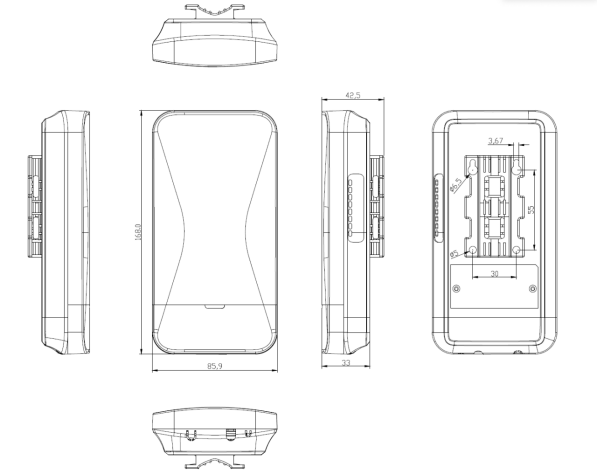

Dimension

168mm*86mm*42.5mm

Weight

0.28kg

Temperature

Working: -20°C to 55°C；Storage: -40°C to 70°C；Humidity: 5％～95％(Non-Condensing)

IP Grade

IP65

ESD

Air:±8K, Touch:±6K

Electrical Surge

Common Mode: 2K, Differential Mode: 1K

Wireless

Intelligent dynamic polling, automatic channel selection, automatic modulation mode selection, automatic transmission power control (ATPC)

Wireless Safety

WPA/WPA2 personal encryption, WPA/WPA2 enterprise encryption, WACL, user isolation

Wireless QoS

TDMA implements 4 queue priority

Network mode

IPv4 IPv6

VLAN

Support VLAN and VLAN transparent transmission

WAN protocol

Static IP，DHCP client

Service

DHCP service, SNMP service, NTP client, route tracking, ping watchdog

Management

HTTP(S) GUI, SSH, SNMP read, WNMS, Telnet

Built Tool

Site survey, connection testing, antenna calibration

Working frequency

5180 ~5850 MHz

Gain

15 dBi

Polarization mode

Vertical/horizontal dual polarization

Horizontal beam angle

60°

Vertical beam angle

30°

PoE adapter

1

Guide manual

1

Gift Box

1
